Application:

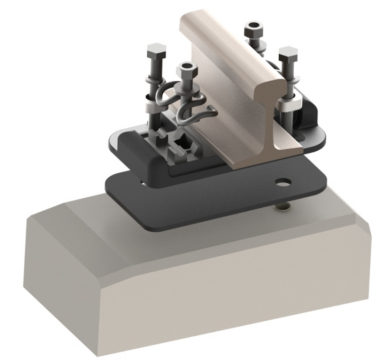

The rail baseplate is a type of vibration reduction product under the rail, which adopts a combination of metal frame and rubber vulcanization. The rail baseplate is used to fix the rail on the track slab, and form a complete flexible connection between rail and track slab, which can buffer the impact force from any direction, secure the track installation.The rail baseplate mainly install on the viaduct, underground line, main line, depot line, turnout etc.
System Configuration and Part Functions:

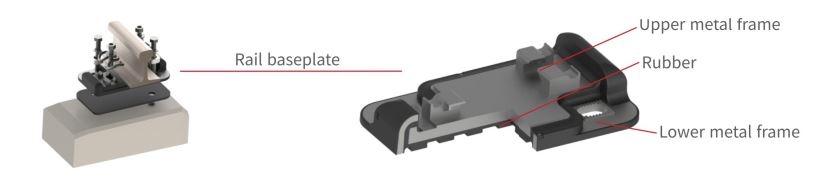

| Upper metal frame |
The part located above the baseplate that reinforces and supports the structure of the rubber. |
| Rubber |
Deform by compression or shear, provide medium or high damping effect, limit the lateral movement of the rail. |
| Lower metal frame |
Fasten the rail baseplate to the sleeper or track bed by anchor bolts. |
Characteristics
· Integrated rubber metal parts
· High electrical insulation(≥105Ω)
· Service life over 20 years
· High vibration attenuation. The reduction effect up to 8dB
· Low ratio of static and dynamic stiffness
· Two vertical stiffness stage
Capability & Experience
· Comply with EN13146、EN 13481、ASTM D2240、ASTM D412、ASTM D429 and ISO 6502
· Spread cross 5 continents, such as Sydney Rail Network、Perth Rail Network、Queensland Rail Network、Melbourne Rail Network、New Zealand Rail Network and Korea, etc,
· Advanced production equipment and technology
· Design new baseplate according to customer requirements within 3 months
· Annual output is at least one million pieces.
· Full testing capabilities

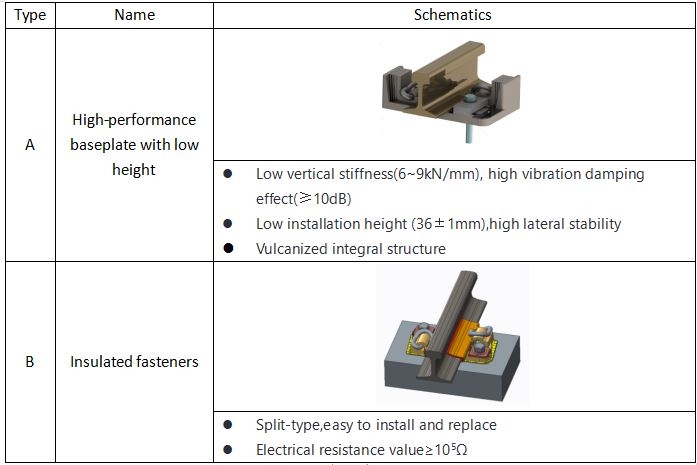

Typical Rail Baseplates types:
More Details:
