Applications
Support infrastructure or instruments that are sensitive to vibration.

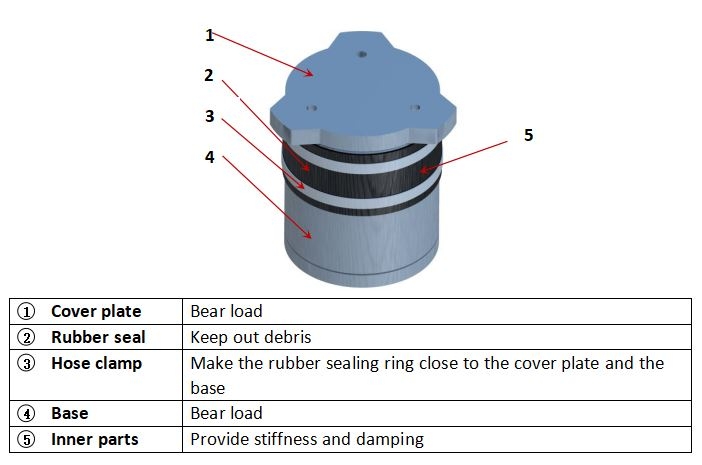

Configuration
Charateristics
· Damping ratio 5%~12% and good vibration reduction effect (≥15dB);
· Maximum carrying capacity≥100kN;
· Adjustable height (10mm~60mm);
· Low frequency vibration reduction effect (≥4dB);
· Service life (≥50 years);
· Maintenance-free,Stepless height adjustment,Two-stage vertical static stiffness.
Capability and Experience
· According to the requirements of the line vibration reduction effect , the dynamic simulation analysis can be carried out and obtain the required product specifications;
· All the type test items of the product can be tested (Static stiffness, Damping ratio, Fatigue performance and so on)and ensure the quality of the product;
· Products have been applied in the Chongqing, Wuxi,Beijing , Shanghai, Xi’an so on since 2017;
· Design new products according to customer requirements within 3 months.
