Applications

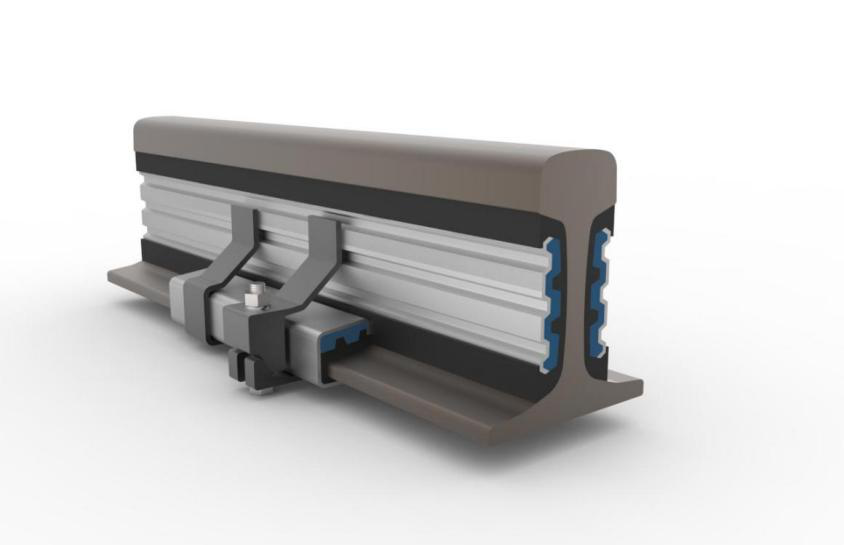

Rail Damper is a noise reduction damper install on both sides of the rail waist ,used to consume and transfer the vibration energy generated by the rail.Currently mainly used in urban rail transit and urban subway.

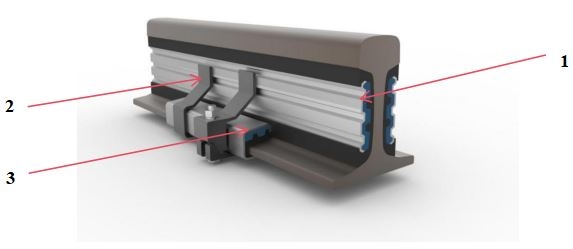

Configuration
1. Noise reduction block
Transfer and consumption of vibration energy generated by rail，the main components of the rail damper;
2. Clamp
Limit the lateral movement of the rail web and serve as a fixed rail web;
3. Rail Flange
Transfer and consume the energy generated by the bending of the steel rail,and suppress the vibration of the steel rail.
Charateristics
· Rail noise reduction effect ≥ 4dB (A);
· Modular assembly;
· High reliance clamping mechanism and dual protective effect;
· Easy and fast assembly and disassembly.
Capability and Experience
· Applied to existing lines and new lines since 2023;
· Applied to (-50 ℃~+80 ℃) climate environments;
· Have good suppression ability for curve squealing and rolling noise；
· Develop new systems according to customer requirements within 1-3 months;
· Production capacity can be adjusted according to customer needs;
· Possess testing capabilities include vibration damping performance testing,acoustic performance testing;
