Features：
● MTU 12V4000C13R 1600HP engine
Applicable to most of mines at present, and the power will not be reduced for the altitude of 4500m. By using MTU's second-generation high-pressure common rail fuel injection system, it has better fuel economy.
Features：
● With Macpherson independent suspension structure
● Hybrid hydro-pneumatic suspension with advanced performance is adopted for suspended cylinder to reduce turbulence.

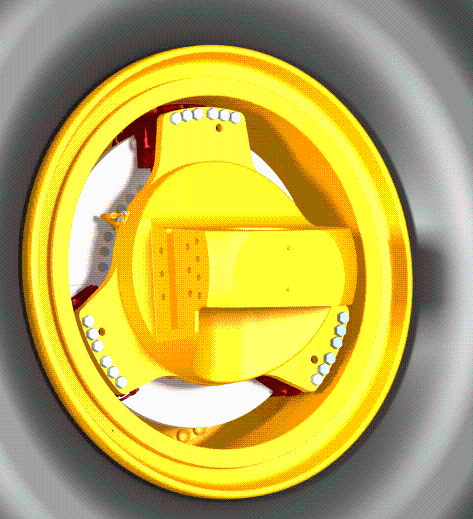

Features：
Integrated with traction motor, wheel reducer, caliper brake and parking brake.
The traction motor is designed to adapt to wind and sand environment, and the optimized bearing structure can reduce dust entry.
NGW two-stage composite planetary gear train is adopted for wheel reducer.
The full hydraulic caliper disc brake system meets the requirement of ISO 3450-2011.
Real-time monitoring of vibration and temperature can be achieved by online monitoring system.
Features：
The converter cabinet and the traction motor share the same fan, which is coaxial connected with the engine.
Braking resistance fan is driven by braking energy
The generator is cooled by axial self-ventilation
Features：
● Full hydraulic caliper disc brake system
● The diameter of front wheel brake disc is 40.1 in (1020mm), designed with three sets of brake caliper
● The diameter of rear wheel brake disc is 11.8 in (600mm), two braking discs on each side, designed with single brake caliper.
● Integrated parking brake
● The service brake is used with electric wheel resistance slow braking, which is generally used when the speed is lower than 3km/h.
● Front wheel brake, rear axle brake and parking brake can be used simultaneously in case of emergent braking.
● Meet the requirements of ISO 3450-2011 standard.
Feature:
Equipped with adjustable air suspension seat and retractable steering column, the suspension range is up to 180mm and the weight regulation ranged from 50kg to 220kg.
Integrated anti-rolling and anti-falling structure, the structural design meets the requirement of IOS3471/ISO3449.
Comfortable cab operating environment and the noise is lower than 80db.
The operation interface can display and view the information status of the machine in real time, and prompt the fault information in time.
Features:
● Rated working point efficiency 98%
● Torque control traction motor, low constant speed downhill
● The speed limit value can be set
● Abnormal protection of DC bus, power module and motor current
● Wheel motor and diesel engine speed monitoring
● With fault recording, storage and download functions
● Good grounding protection, IP54 dustproof and waterproof
● With obvious high pressure indication and identification
● Air cooling
● CAN2.0B bus J1939 protocol communication
● Monitor and adjust the operation status of the converter through PC
Features:
● Integrated control and intuitive display interface, convenient for drivers to obtain real-time data of vehicle operation
● Complete real-time car running data, convenient for maintenance personnel to quickly collect the diagnostic information
