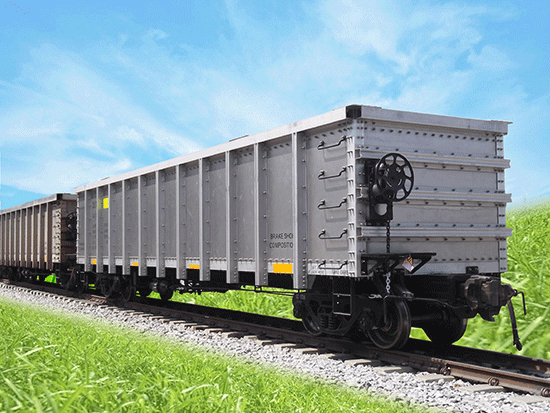

This aluminum alloy gondola wagon is utilized to operate on Columbia 914mm gauge track for coal transportation. This wagon is mainly comprised of car body, brake system, coupler & draft gear and bogie, etc. Car body adopts rivet-welded structure which is mainly comprised of under frame, under frame accessories, side wall, end wall and connection pull rod etc. Ride control bogie, air brake system which complies with AAR, FSW hand brake, F/FR fixed (rotatory) coupler and TF-880 buffer are installed to this wagon.
| Gross Weight (t) |
64 |
| Axle-load(t) |
16 |
| Operation speed(km/h) |
85 |
| Track gauge(mm) |
914 |
| Min. radius of curvature negotiable (m) |
80 |
| Length(mm) |
14046 |
| Max. Width(mm) |
2693 |
| Height (empty) (mm) |
2941 |
| Note: the parameter of loading capacity is not shown in exported products |
|
