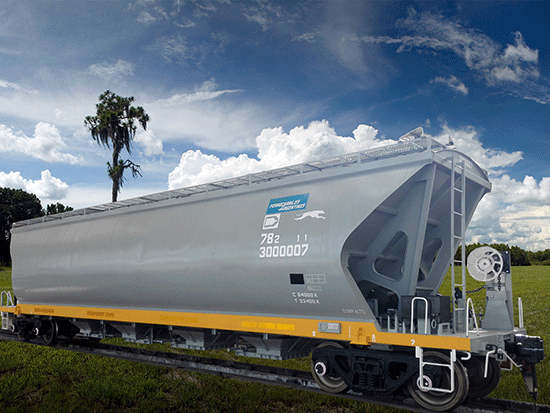

This hopper wagon is utilized to operate on Argentina 1435mm track gauge railway and mainly used to transport bulk grain such as soybean, corn. This wagon is mainly comprised of car body, bottom and loading hatch mechanism, air brake device, hand brake, coupler & draft gear and bogie, etc. The car body is high strength weathering resistant welding structure, which is mainly comprised of underframe, side wall, end wall, wagon roof and hoppers etc. Ride control bogie, DB60 brake system and hand brake system, 13B bottom operation coupler and MT-2 buffer are installed to this wagon.
| Gross Weight (t) |
88 |
| Axle-load(t) |
22 |
| Operation speed(km/h) |
100 |
| Track gauge(mm) |
1435 |
| Min. radius of curvature negotiable (m) |
90 |
| Length(mm) |
16000 |
| Max. Width(mm) |
3180 |
| Height (empty) (mm) |
4000 |
| Note: the parameter of loading capacity is not shown in exported products |
|
