CCK138 Stainless Steel Ore Gondola Car

Source: DateTime: 2016-05-24

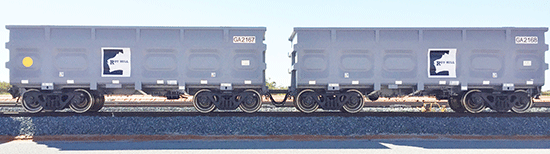

General: The Ore Cars are applicable to operate on standard gauge track railway in Australia and mainly used to transport ore. Cargos are to be unloaded by dumper. The car pair is comprised of two cars which are connected by draw bar, one is the control car and the other is the slave car. The car pair is mainly comprised of car body, draft gear, brake system, bogie, painting and marking, etc. High strength weathering resistant steel and stainless steel welding structure are adopted to car body, also, SSRM bogie, freestanding ECP electronic control brake system, F/FR fixed (rotatory) coupler and SL-76 buffer are installed to this car.

Gross Weight(t)

160

Axle-load(t)

40

Operation speed(km/h)

80

rack gauge(mm)

1435

Min. radius of curvature negotiable (m):

90

Length(mm)

22000

Max. Width(mm)

3278

Height (empty)(mm)

3400

Note: the parameter of loading capacity is not shown in exported products
