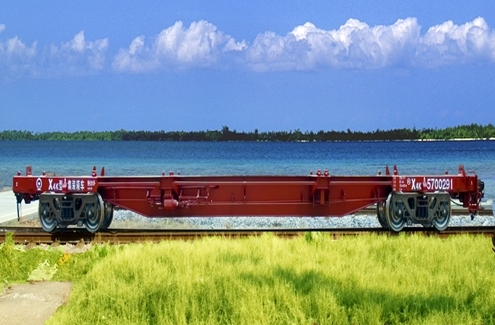

Summary: This flat car specially utilized for container transportation is suitable for operating on China standard gauge railway. It is mainly comprised of underfame, locking device, bogie, brake equipment, coupler and draft gear, etc. The underframe is of all steel welded structure and material is weathering resistant steel. The car adopts fixed and turnover lockers, ZK6 bogie, air brake system with120 type control valve, rotary chain type hand brake, 17 type coupler and MT-2 type draft gear.
Main technical parameters：
| Loading capacity（t） |
72 |
| Tare weight（t） |
≤21.8 |
| Operating speed (km/h) |
120 |
| Min. radius of curvature negotiable (m) |
145 |
| Container specification:Three 20ft, One 40ft and one 20ft, One 40ft or 45ft or 48ft or 50ft or 53ft |
|
