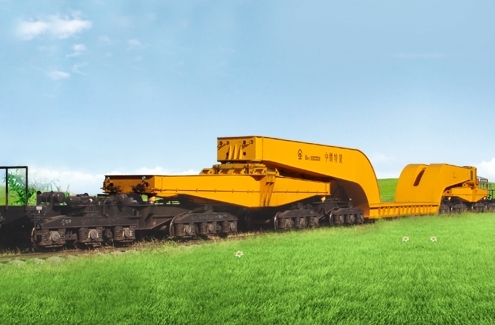

Summary: This special car is utilized for grossly oversized and very heavy goods transportation such as generator stator, transformer, etc., which is suitable for operating on China standard gauge railway. It is mainly comprised of one depressed underframe, two middle underframes, four small underframes, hydraulic side bearing, bogie, brake equipments, coupler and draft gear, etc. The depressed underframe is fabricated from one load-bearing beam, side arm and center plate sill. And the car adopts two-axle (class E) welding frame type bogie, air brake system with 120 type control valve, chain type hand brake, 13 type top operation coupler and No. 2 draft gear.
Main technical parameters:
| Loading capacity（evenly distributed load/t） |
260 |
| Tare weight（t） |
≤140 |
| Height of load-bearing plane (mm): 1150(Empty car) |
|
| Number of axle |
16 |
| Operating speed (km/h) |
90 |
| Min. radius of curvature negotiable (m) |
145 |
