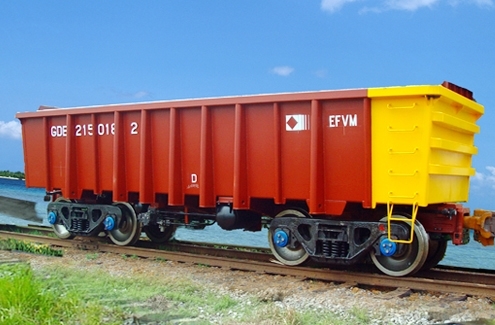

Summary:This car specially utilized for ore transportation is suitable for operating on Brazil CVRD railway, control car and slave car as a pair connected by drawbar. It is mainly comprised of car body, bogie, brake equipments, coupler and draft gear, etc. The car body is of all steel welded structure, and the car adopts ride control type bogie, air brake system equipped with DB60 type control valve, wheel chain type hand brake, one end of the control car equipped with FR type rotary coupler, and one end of the slave car equipped with F type fixed coupler and MT-2 type draft gear.
Main technical parameters:
| Loading capacity (t) |
82 |
| Tare weight (t) |
≤18 |
| Volume (m3) |
28 |
| Gauge (mm) |
1000 |
| Operating speed (km/h) |
75 |
| Min. radius of curvature negotiable (m) |
127 |
