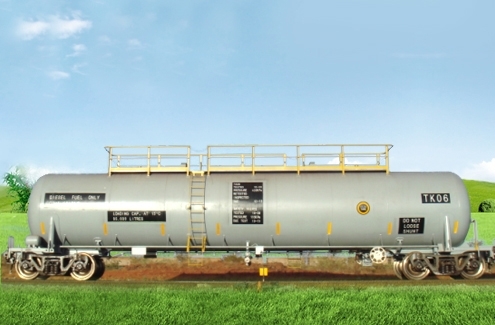

Summary: This tank car utilized for diesel oil transportation is suitable for operating on Australia railway with 1435mm gauge. It is mainly comprised of headstocks, tank body, discharging device, bogie, brake equipments, coupler and draft gear, etc. The car body is of all steel welded structure without center sill, and the car adopts 40t axle-load low track force bogie, ECP brake system with EP60 type control valve, NSW type hand brake, F type coupler and SL-76 type draft gear.
Main technical parameters:
| Loading capacity（t） |
82 |
| Tare weight（t） |
38 |
| Total volume（m3） |
97 |
| Effective volume（m3） |
95 |
| Max. operating speed (km/h) |
90 |
| Min. radius of curvature negotiable (m) |
100 |
| Loading and unloading manner: Loading & unloading from the bottom |
|
