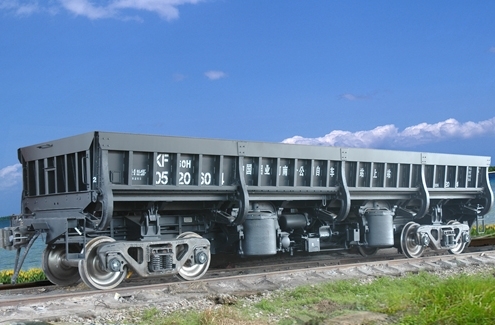

Summary: This car itself combined with unloading device is used for transporting ore, sandstone, coal, construction materials and other bulk goods, applicable to China standard gauge railway. It is mainly comprised of underframe, car body, bogie, brake equipment, dumpling device, coupler and draft gear, etc. The underframe is of all steel welded structure. Its body can dump sideward and its side door can be opened downward, and dumping power source adopts compressed air. The car adopts ZK5 bogie, air control system with 120 type control valve, NSW type hand brake, 13A type top operation coupler and MT-2 type draft gear.
Main technical parameters：
| Loading capacity（t） |
60 |
| Tare weight（t） |
≤34 |
| Volume （m3） |
27 |
| Operating speed (km/h) |
120 |
| Min. radius of curvature negotiable (m) |
145 |
