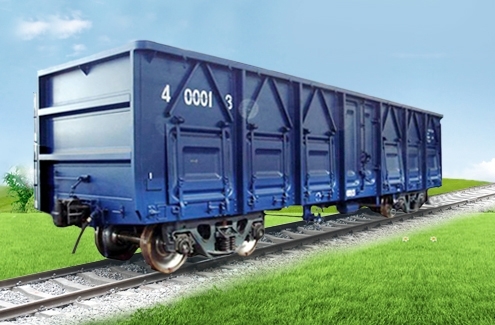

Summary: This general-purpose gondola car is suitable for operating on Angola railway with gauge of 1067mm. It is mainly comprised of car body, bogie, brake equipments, coupler and draft gear, etc. The car body is of all steel welded structure, and the car adopts 1067mm gauge low track force bogie, air brake system equipped with 120 type control valve, ratchet wheel and pawl type hand brake, 13 type top operation coupler and ST type draft gear.
Main technical parameters：
| Loading capacity (t) |
43 |
| Tare weight (t) |
≤21 |
| Volume(3) |
51.7 |
| Max. operating speed (km/h) |
100 |
| Min. radius of curvature negotiable (m) |
80 |
