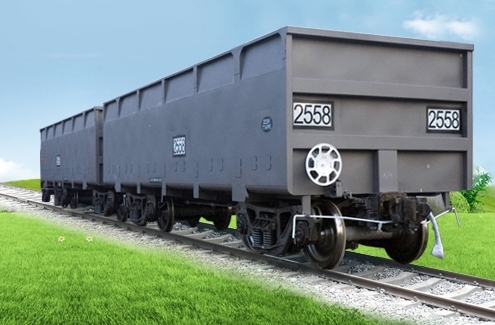

Summary:This Gondola Car specially utilized for granular ore transportation is suitable for operating on Australia railway with gauge of 1435mm, control car and slave car as a pair connected by drawbar. It is mainly comprised of car body, bogie, brake equipments, coupler and draft gear, etc. The car body is of all steel welded structure, and the car adopts 40t axle-load low track force bogie, ECP brake system equipped with EP60 type control valve, NSW type hand brake, and the end of control car equipped with FR type rotary coupler, the end of slave car equipped with F type fixed coupler and SL-76 type draft gear.
Main technical parameters:
| Loading capacity (t) 137.3 |
|
| Tare weight (t) ≤22.7 |
|
| Volume(m3) |
69 |
| Max. operating speed (empty car)(km/h) |
90 |
| Max. operating speed (loaded car)(km/h) |
80 |
| Min. radius of curvature negotiable(m) |
287 |
