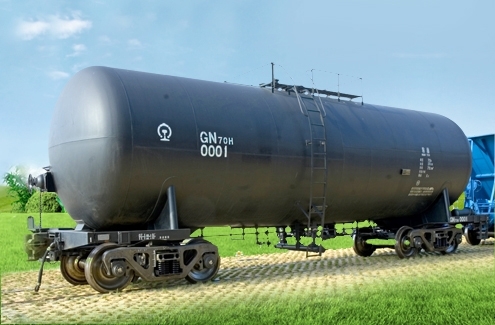

Summary: This tank car utilized for transporting crude oil, heavy diesel oil, lubrication oil and other viscous oil medium is suitable for operating on China standard gauge railway. It is mainly comprised of headstocks, tank body assembly, heating and discharging device, bogie, brake equipments, coupler and draft gear, etc. The car is of V-shaped conical barrel structure without underframe, and adopts built-in heating system and discharging device, ZK5 or ZK6 bogie, air brake system with 120 type control valve, NSW type hand brake, 17 type coupler and MT-2 type draft gear.
Main technical parameters:
| Loading capacity(t) |
70 |
| Tare weight(t) |
≤23.6 |
| Total volume (m3) |
78.1 |
| Effctive volume (m3) |
73.7 |
| Commercial operating speed(km/h) |
120 |
| Min. radius of curvature negotiable(m) |
145 |
