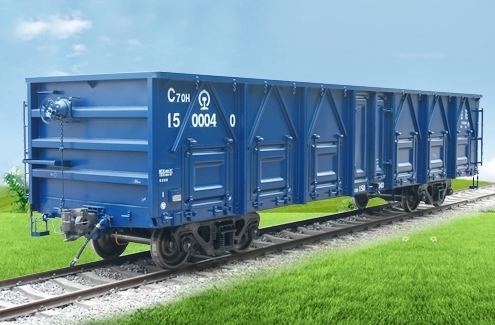

Summary:This General-purpose Gondola Car is suitable for operating on China standard gauge railway. It is mainly comprised of car body, bogie, brake equipments, coupler and draft gear, etc. The car body is of all steel welded structure, and the car adopts ZK5 or ZK6 bogie, air brake system equipped with 120 type control valve, NSW type hand brake, 17 type coupler and MT-2 type draft gear.
Main technical parameters:
| Loading capacity（t） |
70 |
| Tare weight（t） |
≤23.8 |
| Volume（m3） |
77 |
| Operating speed (km/h) |
120 |
| Min. radius of curvature negotiable (m) |
145 |
