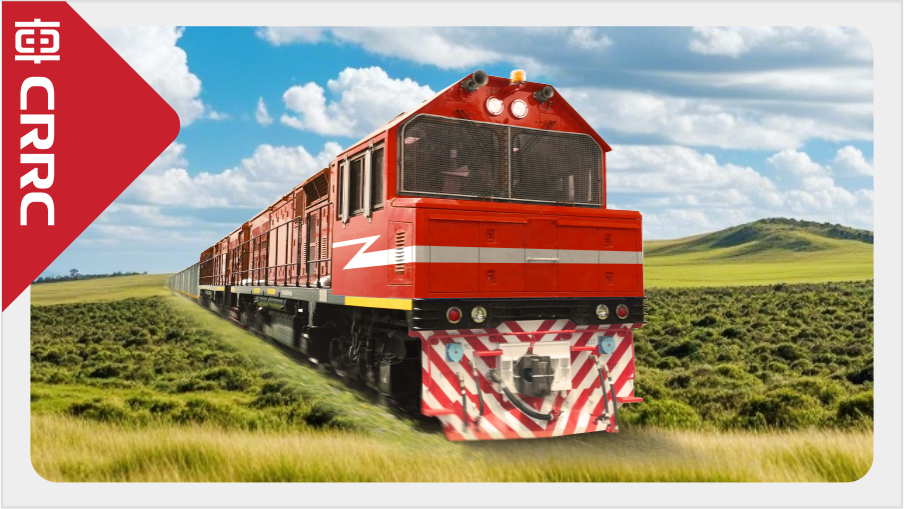

| lt is an AC-DC-AC diesel locomotive,and adopts a single driver's cab& outside corridor structure, with diesel engine service power of 155OkW, axle arrangement of A1A-A1A, starting tractive effort of 265kN, continuous tractive effort of 190kN, continuous speed of 21.5km/h and maximum running speed of 120km/h. |
|
Main Technical Parameters |
| Application | Main line freight transportation | Track Gauge | Narrow/Standard/Broad |
| Axle Arrangement | A1A-A1A | Wheel Diameter | 1016mm |
| Axle Load | ≥15t | Locomotive Service Weight | 90t |
| Service Output of Diesel Engine | 1550kW | Min. Negotiable Curve Radius | 80m |
| Max. Running Speed | 120km/h | Continuous Speed | 21.5km/h |
| Max. Starting Tractive Effort | 265kN | Continuous Tractive Effort | 190kN |
| Fuel Capacity | 3000L | Oil Capacity | 750L |
| Sand Capacity | 200L | Overall Dimensions (L×W×H) | 19000mm×2780mm×3720mm |
