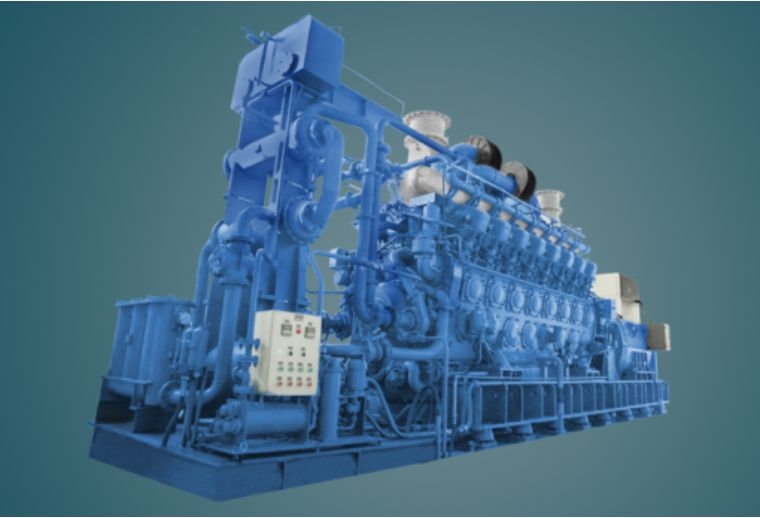

| With self-produced diesel engine as the original generating set, the company has developed 240, 280, NY320 and NY210 series generating sets, which can use the combustible light diesel oil, heavy oil, and oil & gas as fuel. |
|
Main Technical Parameters (280 Series) |
| Type of Generating Set | NYLF1300 | NYLF2700 | NYLF3600 |
|---|---|---|---|
| Power of Generating Set (KW) | 1150-1300 | 2250-2700 | 3000-3600 |
| 50Hz Rated Voltage (kV) | 0.4/6.3 | 6.3/10.5 | 6.3/10.5 |
| 60Hz Rated Voltage (kV) | 0.45/6.6 | 6.6/13.8 | 6.6/13.8 |
| Engine Type | 6280ZJ | 12V280ZJ | 16V280ZJA |
| Overall Dimension (L×W×H mm) | 7816×2690×3490 | 8150×2700×910 | 9000×2700×3910 |
| Weight (T) | 21.3 | 45 | 54 |
