JC0C Hybrid Engineering Vehicle

Source: DateTime: 2021-07-15

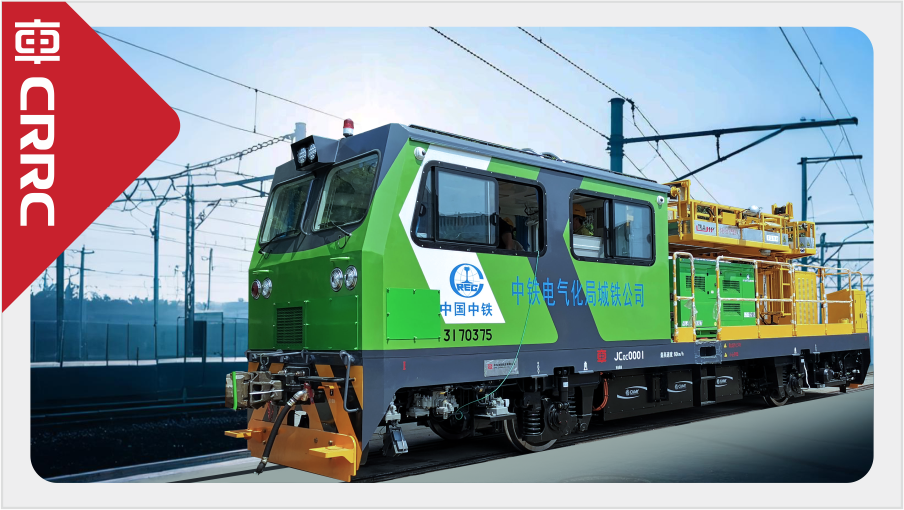

JCoc hybrid operating vehicle with lithium iron phosphate battery and diesel-generator set as hybrid power, is designed by China Railway Electrification Engineering Group Co., Ltd. for the operation of standard-gauge subway contact-network. The service capacity of the battery is 265KWh, the power of the diesel-generator set is 64KW, and the maximum operating speed is 60km/h.

Main Technical Parameters

Application Metro catenary operation Track Gauge 1435mm
Axle Arrangement B0 Wheel Diameter 840 mm
Axle Load ≤14t Locomotive Service Weight ≤28t
Battery Capacity 265 kW·h Power of Gen-Set 64 kW
Min. Negotiable Curve Radius 80 m Max. Running Speed 60 km/h
Continuous Speed 23 km/h Max. Starting Tractive Effort 47 kN (20min)
Continuous Tractive Effort 31 kN Motor Rated Power 240 kW (2×120 kW)
Overall Dimensions (L×W×H) 10920mm×2560mm×3350mm
