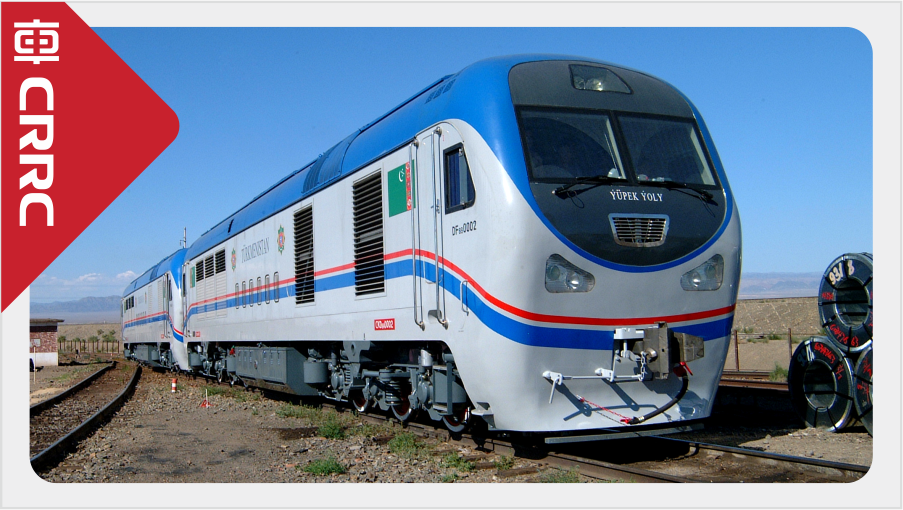

| CKD9A diesel locomotive is used for main line passenger transportation on broad gauge railway, which has been exported to Turkmenistan, Tajikistan and Mongolia, etc. The locomotive adopts double driver's cabs and inside corridor structure, equipped with a 16V240ZJA diesel engine, with a service power of 3860KW and a maximum running speed of 120km/h. The locomotive is equipped with microcomputer control system, running safety speed monitoring system and resistance braking device with full power self-load test function, etc. |
|
Main Technical Parameters |
| Application | Main line passenger transportation | Track Gauge | 1520 mm |
| Axle Arrangement | C0-C0 | Wheel Diameter | 1050 mm |
| Axle Load | 23 t | Locomotive Service Weight | 138 t |
| Max. Service Output of Diesel Engine | 3680 kW | Min. Negotiable Curve Radius | 125 m |
| Max. Running Speed | 120 km/h | Continuous Speed | 35.2 km/h |
| Max. Starting Tractive Effort | 442 kN | Continuous Tractive Effort | 292 kN |
| Fuel Capacity | 9000 L | Oil Capacity | 1200 kg |
| Sand Capacity | 800 kg | Overall Dimensions (L×W×H) | 22480mm×3337mm×4736mm |
