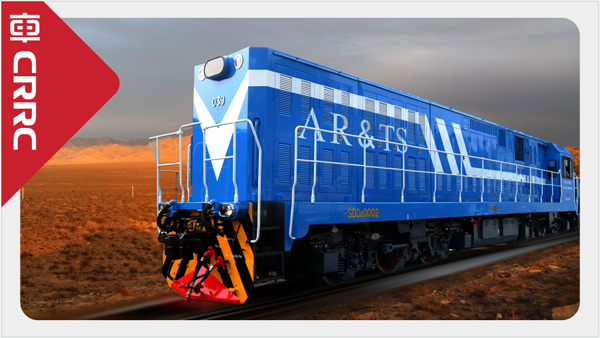

| SDD2 electric transmission diesel locomotive is used for main line passenger and freight transportation on narrow gauge railway, which has been exported to South Africa. The locomotive adopts single driver's cab and outside corridor structure, equipped with a CAT 3516B diesel engine, with a service power of 1660KW and a maximum running speed of 120km/h. The locomotive is equipped with microcomputer control system, multiple-unit device and resistance brake device. |
|
Main Technical Parameters |
| Application | Main line passenger & freight transportation | Track Gauge | 1065mm |
| Axle Arrangement | C0-C0 | Wheel Diameter | 1000mm |
| Axle Load | 18.5t | Locomotive Service Weight | 111t |
| Max. Service Output of Diesel Engine | 1620kW | Min. Negotiable Curve Radius | 90m |
| Max. Running Speed | 120 km/h | Continuous Speed | 18.7 km/h |
| Max. Starting Tractive Effort | 345 kN | Continuous Tractive Effort | 223 kN (continuous current limit) |
| Fuel Capacity | 4500 L | Oil Capacity | 360 kg |
| Sand Capacity | 640 kg | Overall Dimensions (L×W×H) | 18400mm×2900mm×3950mm |
