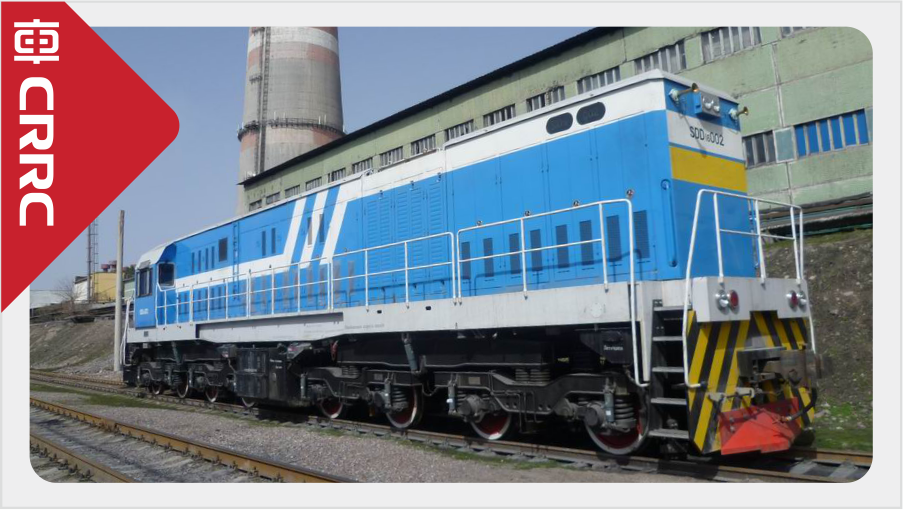

| SDD19 diesel locomotive is a broad-gauge, 8-axis AC-DC electric shunting locomotive, which has been exported to Uzbekistan. The locomotive adopts single driver's cab and outside corridor structure, equipped with a 6280ZJ diesel engine, with a service power of 1500KW and a maximum running speed of 100km/h. It is equipped with microcomputer control system. |
|
Main Technical Parameters |
| Application | Shunting & transfer service | Track Gauge | 1520mm |
| Axle Arrangement | (B0-B0)+(B0-B0) | Wheel Diameter | 1050 mm |
| Axle Load | 22.5 t | Locomotive Service Weight | 180 t |
| Max. Service Output of Diesel Engine | 1500 kW | Min. Negotiable Curve Radius | 80m |
| Max. Running Speed | 100 km/h | Continuous Speed | 8.7 km/h |
| Max. Starting Tractive Effort | 580 kN | Continuous Tractive Effort | 427 kN |
| Fuel Capacity | 6000 L | Oil Capacity | 1000 kg |
| Sand Capacity | 800 kg | Overall Dimensions (L×W×H) | 22250mm×3256mm×4850mm |
