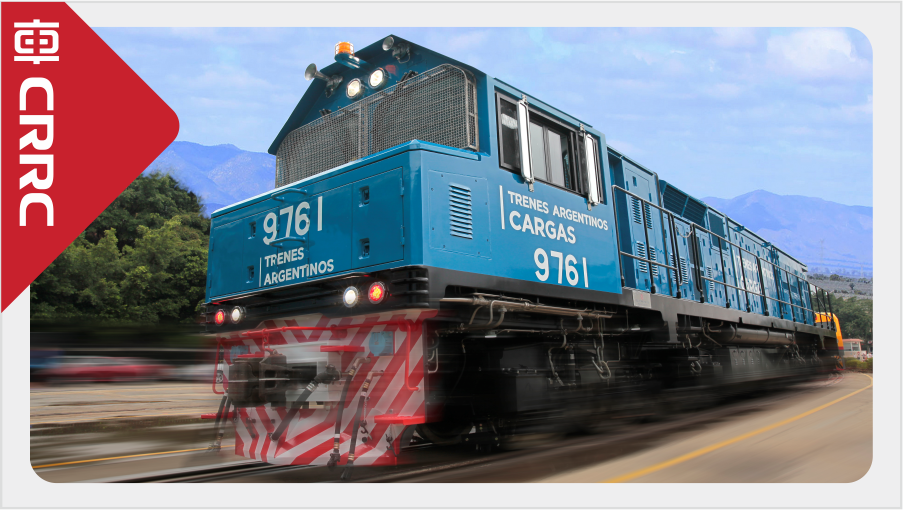

| CDD6A1 diesel locomotive is AC-DC electric transmission locomotive specifically designed for main line freight transportation on narrow gauge railway in Argentina. The locomotive adopts single driver's cab and outside corridor structure, equipped with a MTU16V4000R43 diesel engine, with a service power of 2200KW and a maximum operating speed of 80km/h. |
|
Main Technical Parameters |
| Application | Main line freight transportation | Track Gauge | 1000 mm |
| Axle Arrangement | C0-C0 | Wheel Diameter | 1016 mm |
| Axle Load | 17 t | Locomotive Service Weight | 102 t |
| Max. Service Output of Diesel Engine | 2200 kW | Min. Negotiable Curve Radius | 80 m |
| Max. Running Speed | 80 km/h | Continuous Speed | 22.5 km/h |
| Max. Starting Tractive Effort | 295 kN | Continuous Tractive Effort | 230 kN |
| Fuel Capacity | 4000L | Oil Capacity | 360 kg |
| Sand Capacity | 400 kg | Overall Dimensions (L×W×H) | 18760mm×3070mm×4020mm |
