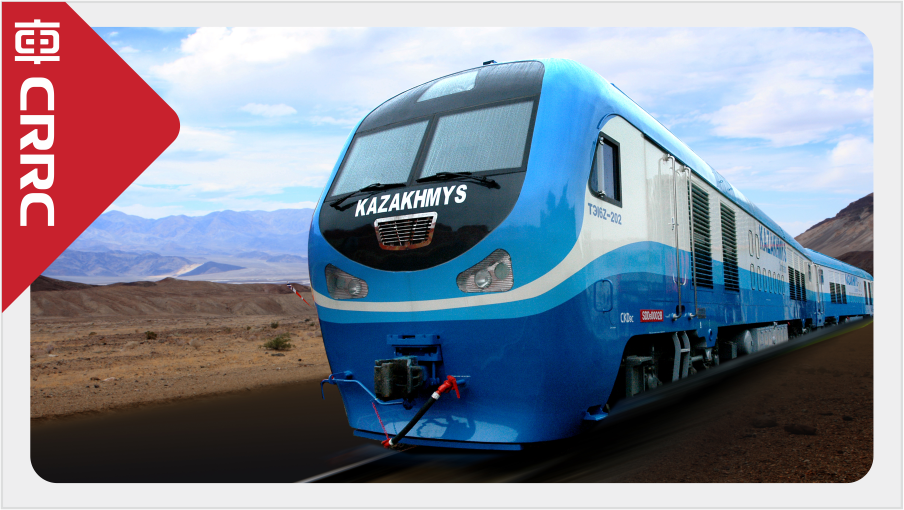

SDD5 Diesel Locomotive

Power: 2000-3000kW

Source: DateTime: 2025-06-12

SDD5 diesel locomotive is used for main line freight transportation on broad gauge railway. The locomotive consists of two identical cars A and B, which are in fixed multiple connection. The whole locomotive can be controlled uniformly in the cab of any one car. The locomotive is equipped with 16V240ZJD diesel engines, with service power of 3240kW and maximum running speed of 100km/h. The locomotive is equipped with microcomputer control system and running safety speed monitoring system.

Main Technical Parameters

Application Main line freight transportation Track Gauge 1520mm
Axle Arrangement (C0-C0)+(C0-C0) Wheel Diameter 1050mm
Axle Load 23t Locomotive Service Weight 2×138t
Max. Service Output of Diesel Engine 880kW Min. Negotiable Curve Radius 125m
Max. Running Speed 100km/h Continuous Speed 23.6km/h
Max. Starting Tractive Effort 2×442kN Continuous Tractive Effort 2×340kN
Fuel Capacity 2×9000L Oil Capacity 2×1200kg
Sand Capacity 2×800kg Overall Dimensions (L×W×H) 22240mm×3337mm×4736mm (single loco.)
