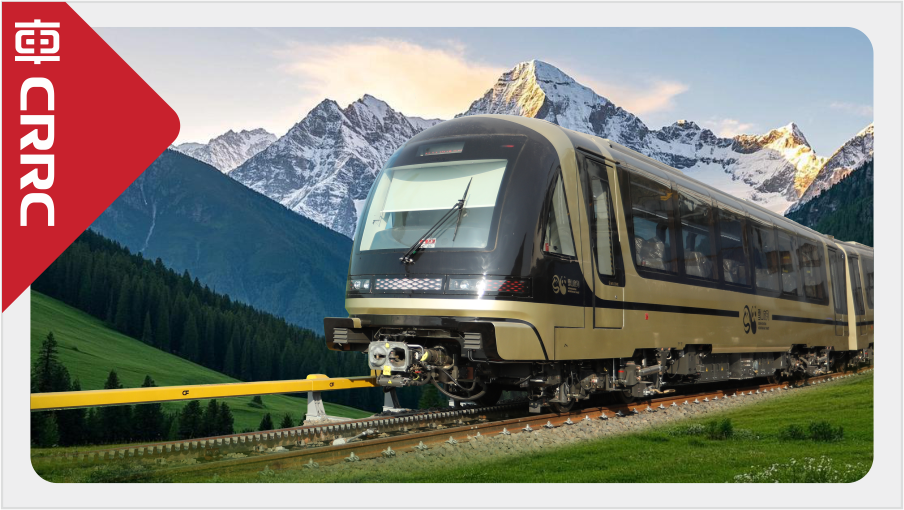

Mountain Rack Locomotive Sightseeing Train

Source: DateTime: 2021-07-16



With large gradients and strong adaptability to the terrain, the rack rail line is suitable for mountaineering railway with large slope in mountainous areas, and the railway construction cost is low. Rack rail vehicle has strong climbing ability, large transportation capacity and high safety, which is suitable for the railway passenger transport in mountain scenic areas. It can be seamlessly connected with the ordinary wheel-rail railway to realize the close combination of rail transportation and tourism.

Main Technical Parameters

Configuration Mode 4 Units Axle Arrangement B0-B0
Main Transmission Mode DC-AC electric transmission Supply Voltage DC1500V
Track Gauge 1000 mm Axle Load 12t
Wheel Diameter 840 mm Min. Radius of Curve Adhesive section 150m
rack section 400m
Max. Negotiable Gradient Adhesive section 40‰
rack section 120‰
Max. Running Speed Adhesive section 120 km/h
rack section 40 km/h
Service Brake Deceleration

Adhesive section: 1.0m/s2
rack section 0.3m/s2

Emergency Brake Deceleration Adhesive section: 1.2m/s2
rack section 0.3m/s2
Rated Passenger Capacity 251 Exceed Passenger Capacity 351
Train Overall Dimensions (L×W×H) 78144mm×2500mm×3800mm
