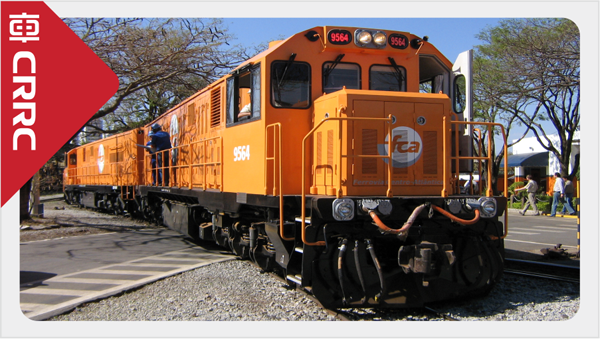

| SDD8 AC-DC electric transmission diesel locomotive is used for main line passenger and freight transportation on narrow gauge railway, which has been exported to Brazil. The locomotive adopts single driver's cab and outside corridor structure, equipped with a CAT3516BDITA 4T diesel engine, with a service power of 1960KW and a maximum running speed of 80km/h. The locomotive is equipped with microcomputer control system, multiple-unit device and resistance brake device |
|
Main Technical Parameters |
| Application | Main line freight transportation | Track Gauge | 1000 mm |
| Axle Arrangement | C0-C0 | Wheel Diameter | 914 mm |
| Axle Load | 20t | Locomotive Service Weight | 120 t |
| Max. Service Output of Diesel Engine | 2060 kW | Min. Negotiable Curve Radius | 60m |
| Max. Running Speed | 80 km/h | Continuous Speed | 18 km/h |
| Max. Starting Tractive Effort | 384 kN | Continuous Tractive Effort | 280 kN |
| Fuel Capacity | 6000 L | Oil Capacity | 400 kg |
| Sand Capacity | 600 kg | Overall Dimensions (L×W×H) | 18300mm×2800mm×3900mm |
