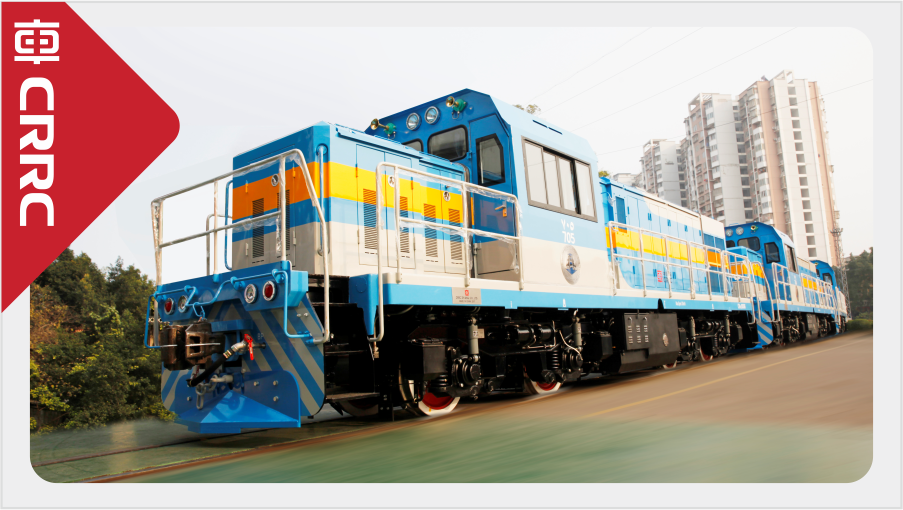

| CK5C hydraulic transmission diesel shunting locomotive is a narrow-gauge locomotive with service power of 470kW. It is suitable for narrow-gauge shunting and transfer operation. The locomotive has a total weight of 64 tons, a track gauge of 1067 mm, an axle arrangement of B-B and a maximum locomotive operating speed of 30km/h. The locomotive adopts PLC control and color display screen. |
|
Main Technical Parameters |
| Application | Shunting service | Track Gauge | 1067 mm |
| Axle Arrangement | B-B | Wheel Diameter | 915 mm |
| Axle Load |
|
Locomotive Service Weight |
|
| Max. Service Output of Diesel Engine | 470 kW | Min. Negotiable Curve Radius | 70 m (passing through at the speed of less than 5km/h) |
| Max. Running Speed | 30 km/h | Continuous Speed | 7 km/h |
| Max. Starting Tractive Effort | 184 kN | Continuous Tractive Effort | 121 kN |
| Fuel Capacity | 2000 L | Overall Dimensions (L×W×H) | 15500mm×3348mm×4751mm |
