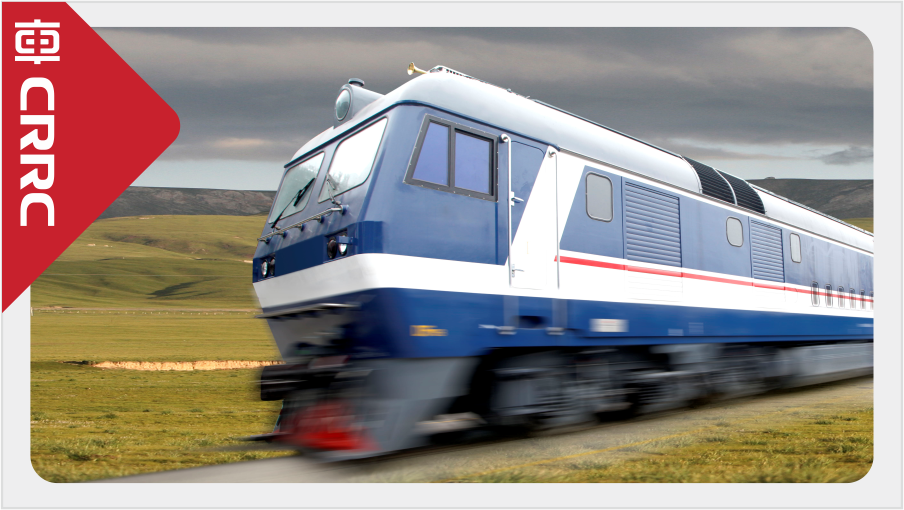

| DF8B AC-DC electric transmission diesel locomotive is used for main line freight transportation on standard gauge railway, which has been exported to Iran and Gabon, etc. The locomotive adopts double driver's cabs and inside corridor structure, equipped with a 16V240ZJA diesel engine, with a service power of 3680KW and a maximum running speed of 100km/h. The locomotive can meet the requirements of heavy-duty and high-speed freight transportation on busy main lines, and has variable axle load for different line’s axle load selection. |
|
Main Technical Parameters |
| Application | Main line freight transportation | Track Gauge | 1435mm |
| Axle Arrangement | C0-C0 | Wheel Diameter | 1050 mm |
| Axle Load | 25t (23t) | Locomotive Service Weight | 150t (138t) |
| Max. Service Output of Diesel Engine | 3680 kW | Min. Negotiable Curve Radius | 145 m |
| Max. Running Speed | 100 km/h | Continuous Speed | 31.2 km/h |
| Max. Starting Tractive Effort | 480 kN | Continuous Tractive Effort | 340 kN |
| Fuel Capacity | 9000 L | Oil Capacity | 1200 kg |
| Sand Capacity | 800 kg | Overall Dimensions (L×W×H) | 22000mm×3304mm×4736mm |
