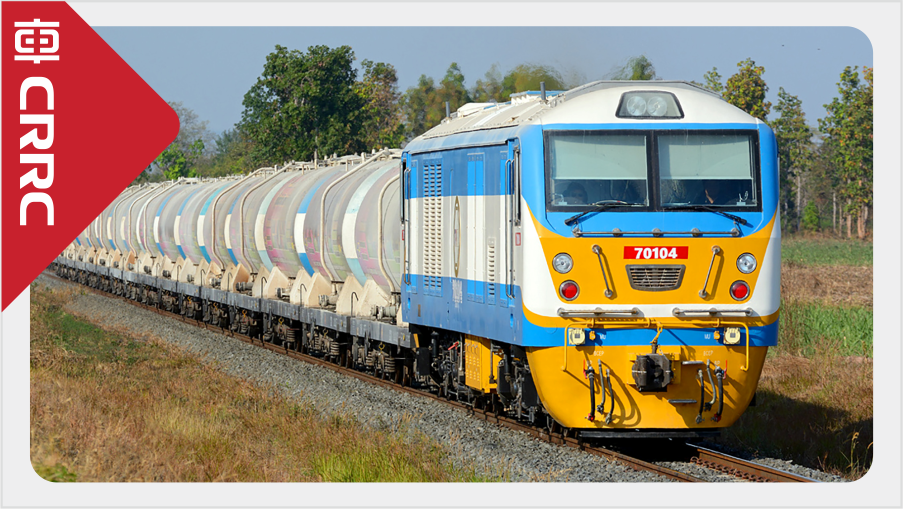

| SDA4 AC-DC electric transmission diesel locomotive is used for main line passenger and freight transportation on narrow gauge railway, which has been exported Thailand. The locomotive adopts double driver's cabs and inside corridor structure, equipped with a CAT3516BHD diesel engine, with a service power of 2060KW and a maximum running speed of 120km/h. |
|
Main Technical Parameters |
| Application | Main line freight transportation | Track Gauge | 1000 mm |
| Axle Arrangement | C0-C0 | Wheel Diameter | 1016 mm |
| Axle Load | 16 t | Locomotive Service Weight | 96 t |
| Max. Service Output of Diesel Engine | 2060 kW | Min. Negotiable Curve Radius | 130 m |
| Max. Running Speed | 100 km/h | Continuous Speed | 19.1 km/h |
| Max. Starting Tractive Effort | 380 kN | Continuous Tractive Effort | 305 kN |
| Fuel Capacity | 4500 L | Oil Capacity | 360 kg |
| Sand Capacity | ≥ 320 kg | Overall Dimensions (L×W×H) | 20700mm×2800mm×3950mm |
