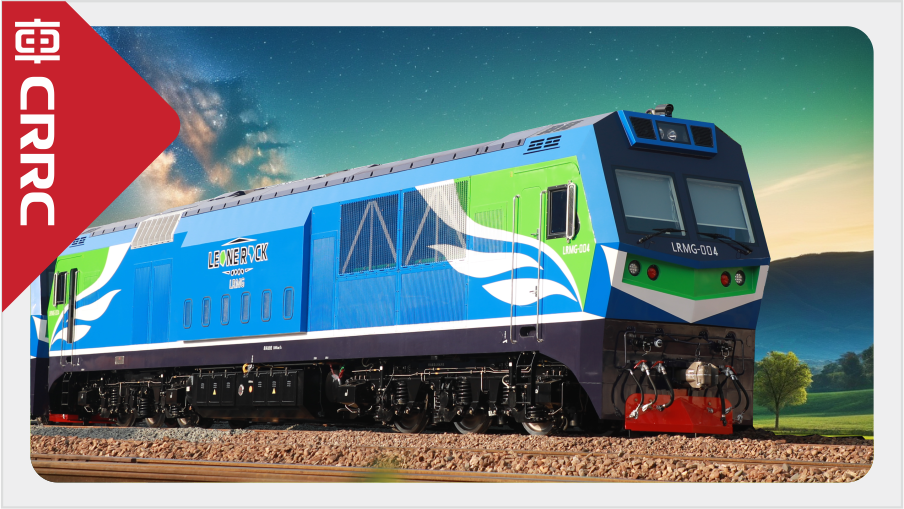

| SDA1 AC transmission diesel locomotive is used for main line freight transportation on standard gauge railway, which has been exported Australia. The locomotive adopts double driver's cabs and inside corridor structure, equipped with a German 20V4000R43L diesel engine, with a service power of 3000KW and a maximum running speed of 120km/h. SDA1 locomotive is the first AC transmission diesel locomotive in China with independent intellectual property rights and exported to developed country. It meets the technical standards of locomotives in Europe and the United States, meets the emission requirements of Euro-III A, and represents the world advanced level. |
|
Main Technical Parameters |
| Application | Main line freight transportation | Track Gauge | 1435mm |
| Axle Arrangement | C0-C0 | Wheel Diameter | 1067 mm |
| Axle Load | 22.3 t | Locomotive Service Weight | 134 t |
| Max. Service Output of Diesel Engine | 3000 kW | Min. Negotiable Curve Radius | 70 m |
| Max. Running Speed | 120 km/h | Continuous Speed | 16 km/h |
| Max. Starting Tractive Effort | 600 kN | Continuous Tractive Effort | 520 kN |
| Fuel Capacity | 10000 L | Oil Capacity | 230 kg |
| Sand Capacity | 800 kg | Overall Dimensions (L×W×H) | 22000mm×2900mm×4240mm |
