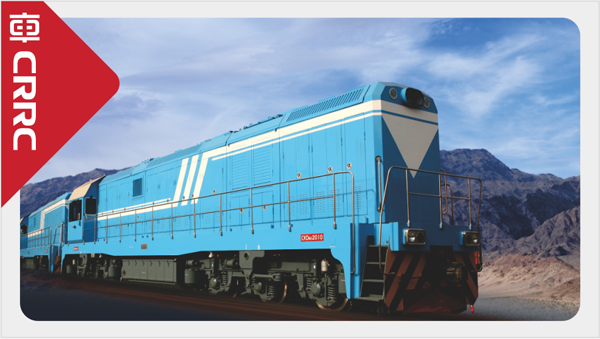

CKD6E Diesel Locomotive
Power: ≤1000kW
Source:
DateTime:
2025-06-20
 |
CKD6E diesel locomotive is AC-DC electric transmission shunting locomotive for wide gauge railway. The locomotive adopts a single driver's cab and outside corridor structure, equipped with a 6240ZJ diesel engine, with a service power of 990kW and a maximum running speed of 80km/h. The locomotive adopts new technologies such as a microcomputer control system. |
Main Technical Parameters |
Application |
Shunting & transfer service |
Track Gauge |
1520mm |
Axle Arrangement |
C0-C0 |
Wheel Diameter |
1050mm |
Axle Load |
22t |
Locomotive Service Weight |
132t |
Max. Service Output of Diesel Engine |
990kW |
Min. Negotiable Curve Radius |
80m |
Max. Running Speed |
80km/h |
Continuous Speed |
9km/h |
Max. Starting Tractive Effort |
420kN |
Continuous Tractive Effort |
274kN |
Fuel Capacity |
6200L |
Oil Capacity |
1000kg |
Sand Capacity |
≥800kg |
Overall Dimensions (L×W×H) |
20050mm×3256mm×4759mm |
