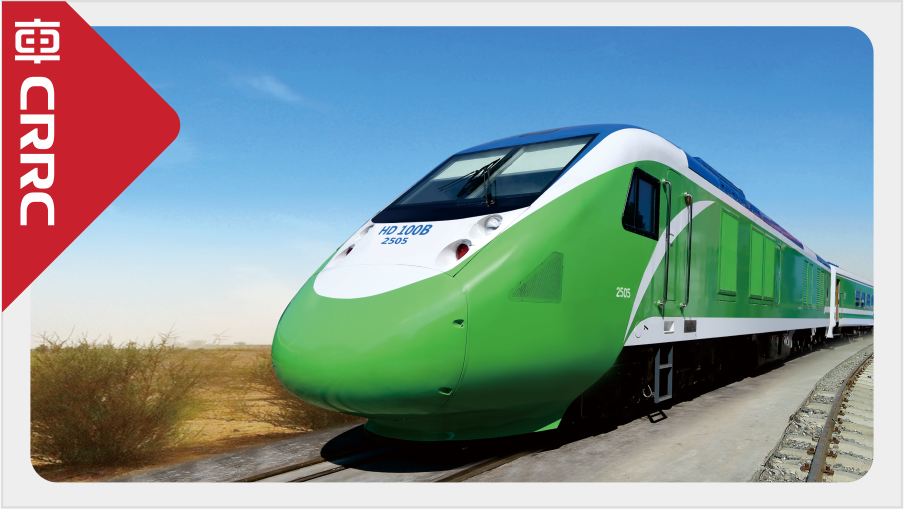

HD100B DMU

Source: DateTime: 2021-07-15



HD100B DMU is AC-DC electric transmission centralized power DMU consisting of 2 motor cars and 6 trailer cars with a total person capacity of 432, which is used for main line freight transportation on narrow-gauge railway. The motor car adopts inside corridor and streamlined carbody, equipped with CAT C3516B diesel engine, with a service power of 2×1250kW and a maximum running speed of 120km/h.

Main Technical Parameters

Application Main line passenger transportation Track Gauge 1067 mm
Clearance Meeting the clearance
requirement of Africa
Operation Environment
  Environment Temperature
  Relative Humidity
  Max. Gradient

0~50℃
97%
10‰
Configuration 2M+6T Total Passenger
Capacity of DMU
432
Power of DMU 2×1250kW Axle Load of Motor Car 15 t
Axle Load of Trailer Car 13.5 t Max. Starting Tractive
Effort of Motor Car
2×172 kN
Max. Running Speed 120 km/h Fuel Capacity 3500 L
Overall Dimensions (L×W×H) 20463mm×2850mm×4090mm
(Motor Car)
