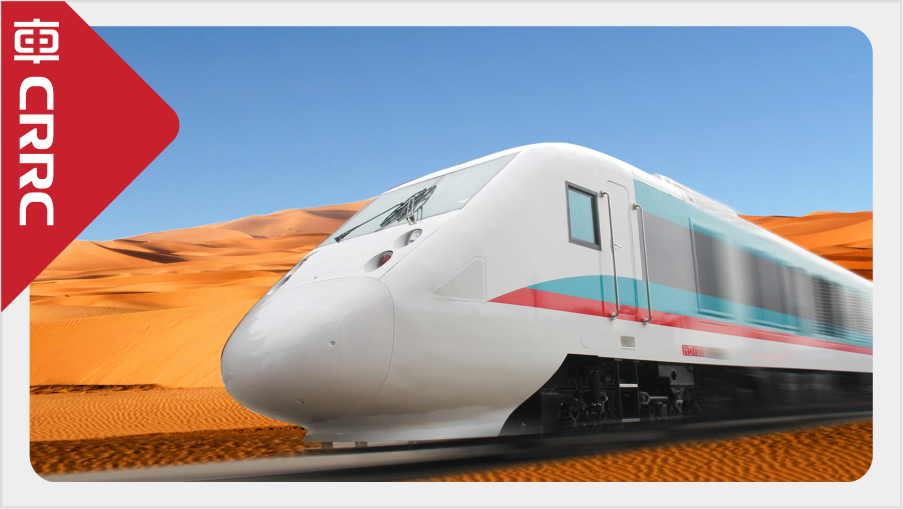

| HD100A DMU is AC-DC transmission centralized power DMU, which is used for main line freight transportation on narrow-gauge railway. The DMU can be marshaled as 2 motor cars with 4 trailer cars or 1 motor car with 3 trailer cars. The motor car adopts inside corridor and streamlined carbody, with a service power of 2×620kW or 620kW and a maximum running speed of 100km/h. |
|
Main Technical Parameters |
| Application | Intercity passenger transportation | Track Gauge | 1067 mm |
| Clearance | Meeting the clearance requirement of Africa |
Operation Environment Environment Temperature Relative Humidity Max. Gradient |
0~48℃ 97%, windy and sandy 1‰ |
| Configuration | 2M+4T or 1M+3T | Total Passenger Capacity of DMU |
300-400 |
| Power of DMU | ≥2×620 kW or 620 kW | Axle Load of Motor Car | 13.5 t |
| Axle Load of Trailer Car | 13.5 t | Max. Starting Tractive Effort of Motor Car |
172 kN |
| Max. Running Speed | 100 km/h | Fuel Capacity | 3300 L |
| Overall Dimensions (L×W×H) | 19400mm×2850mm×4110mm (Motor Car) |
