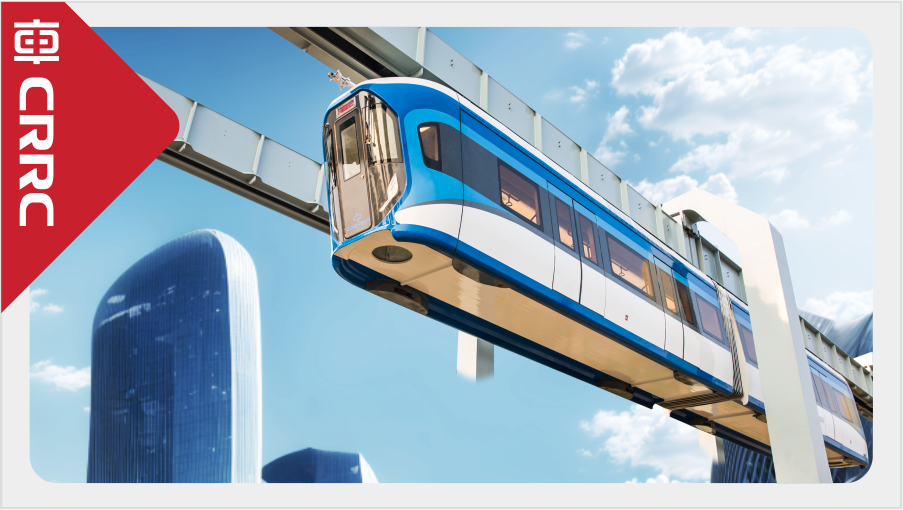

| Hanging monorail train is a new rail transit mode with light weight, medium speed and medium capacity. The main transmission system is AC-DC transmission, driven by permanent magnet traction motors, and the power supply is provided in two ways: third rail power supply and battery power supply. The maximum passenger capacity in a single train is 196, and the passenger capacity of double trains in multiple-unit can reach 8,000-12,000 per hour, and the maximum operating speed is 60 km/h. |
|
Main Technical Parameters |
| Configuration Mode | -Mc+Mc- | Axle Arrangement | B0-B0+B0-B0 |
| Main Transmission Mode | DC-AC electric transmission | Supply Voltage | DC 750 V |
| Axle Load | 4.2 t | Running Wheel Diameter | 540 mm |
| Min. Negotiable Curve Radius | 30 m | Max. Negotiable Gradient | 60‰ |
| Starting Acceleration | ≥1 m/s2 | Service Brake Deceleration | ≤1m/s2 |
| Emergency Brake Deceleration | ≥1.2 m/s2 | Rated Passenger Capacity | 2×72 |
| Exceed Passenger Capacity | 2×98 | Inside and Outside Noise of Train | ≤70dB (A) |
| Overall Dimensions of Carriage (L×W×H) | 10576mm×2300mm×3380mm | ||
