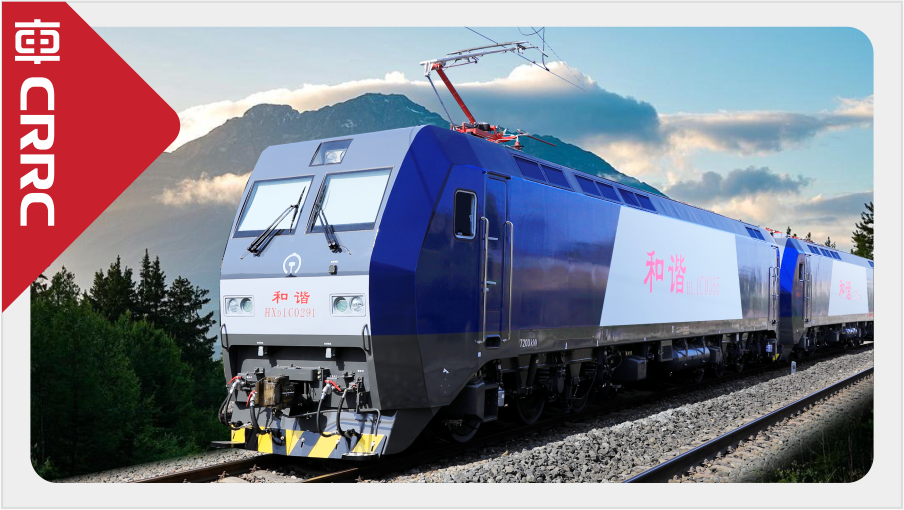

| HXD1C electric locomotive is a six-axle AC transmission locomotive for freight transportation with power of 7200kw. It adopts the technologies of high-power asynchronous traction motor, horizontal main converter, water-cooled converter composed of IGBT elements, single-axle control, microcomputer network control system, microcomputer-controlled braking system, axle suspension bogie, independent ventilation and cooling, etc. The single-axle power of the locomotive is 1200kw, and the maximum operating speed is 120 km/h. |
|
Main Technical Parameters |
| Power Supply System | AC 25kV/50Hz | Track Gauge | 1435mm |
| Axle Arrangement | C0-C0 | Locomotive Service Weight | 138 t |
| Axle Load | 23 t or 25 t | Wheel Diameter | 1250 mm |
| Distance Between Loco. Front and Rear Coupler Centers |
22670 mm | Min. Negotiable Curve Radius | 125m |
| Tractive Power at Wheel Rim | 7200 kW | Regenerative Brake Power at Wheel Rim | 7200 kW |
| Max. Running Speed | 120 km/h | Continuous Speed | 70 km/h (23t) 65 km/h (25t) |
| Max. Starting Tractive Effort | 520 kN(23t) 570 kN(25t) |
Continuous Tractive Effort | 370 kN(23t) 400 kN(25t) |
| Overall Dimensions (L×W×H) | 21885mm×3100mm×4050mm (single loco.) |
