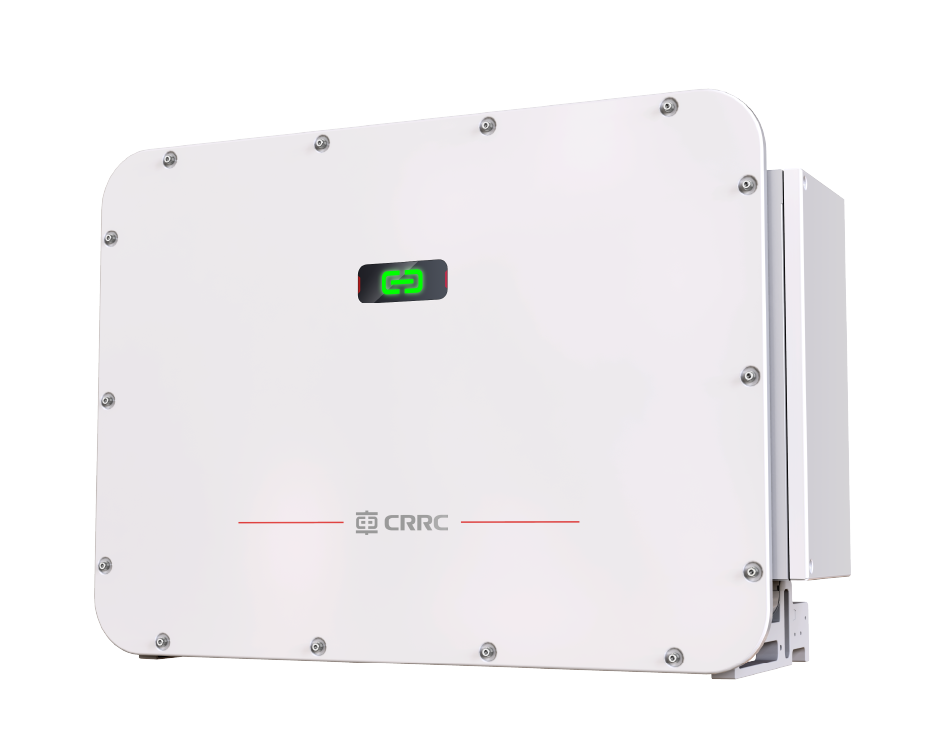

tPower-NL8.150KT
PRODUCT
FEATURES
High Yield
Adapt to various PV modules, allow high current access
High conversion efficiency, wide voltage range, long-lasting power generation, and higher returns
Multiple MPPTs,proactively adapting to grids to ensure power generation
Safeguardinging
IP66 protection degree, High anti-corrosion design, adapt to various hash environments
PID recovery,extend module’s lifespan, and increase power generation
Intelligent arc detection, multiple security protections
Smart Energy
Smart I-V scanning and locate faults quickly
CRRC FORESEE Cloud Service, monitoring the data at anytime & anywhere
Multiple communication methods, adapt to various scenarios
TECHNICAL PARAMETERS
| Product Mode | tPower-NL8.150KT | |||
|---|---|---|---|---|
| DC | ||||
| Startup Voltage | 200V | |||
| Max.DC input voltage | 1100V | |||
| Max. DC input current | 48A | |||
| MPPT voltage range | 180~1000V | |||
| Rated operation voltage | 600V | |||
| Number of MPPT | 7 | |||
| PV strings per MPPT | 3 | |||
| AC | ||||
| Rated output power | 150kW | |||
| Max.Output power | 165kVA | |||
| Max.Output current | 250.7A | |||
| Rated grid voltage | 380Vac,3L/N/PE | |||
| Grid voltage range | 320~480Vac | |||
| Rated grid frequency | 50Hz/60Hz | |||
| Grid frequency range | 45~55Hz/55~65Hz | |||
| Harmonic(THD) | <1%(Rated power) | |||
| Power factor | >0.99(Rated power)/(0.8leading~0.8lagging adjustable) | |||
| DC component | <0.5%(Rated power) | |||
| Protection | ||||
| Grid monitoring | Yes | |||
| DC reverse connection protection | Yes | |||
| AC short-circuit protection | Yes | |||
| Leakage current protection | Yes | |||
| Surge Protection | DC Type ll/AC Type ll | |||
| Ground fault monitoring | Yes | |||
| DC switch | Yes | |||
| PV String current monitoring | Yes | |||
| AFCI protection | Optional | |||
| PID recovery function | Optional | |||
| System parameters | ||||
| Max.efficiency(%) | 98.80% | |||
| European efficiency(%) | 98.20% | |||
| Humidity range | 0~100%,No condensation | |||
| Cooling method | Intelligent air cooling | |||
| Operating ambient temperature range | -30~+60℃ | |||
| Power consumption at night | <7W | |||
| Max. operating altitude | 4000m | |||
| Display | LED/APP/Web | |||
| Communication | RS485/Bluetooth/4G(optional)/WiFi(optional) | |||
| Dimensions(W*H*D) | 1000*700*382mm | |||
| Weight | 97kg | |||
| Protection Degree | IP66 | |||
| Standard compliance | NB/T 32004-2018; IEC 61727;IEC62109-1/2;IEC 61000-6-2/4 | |||
