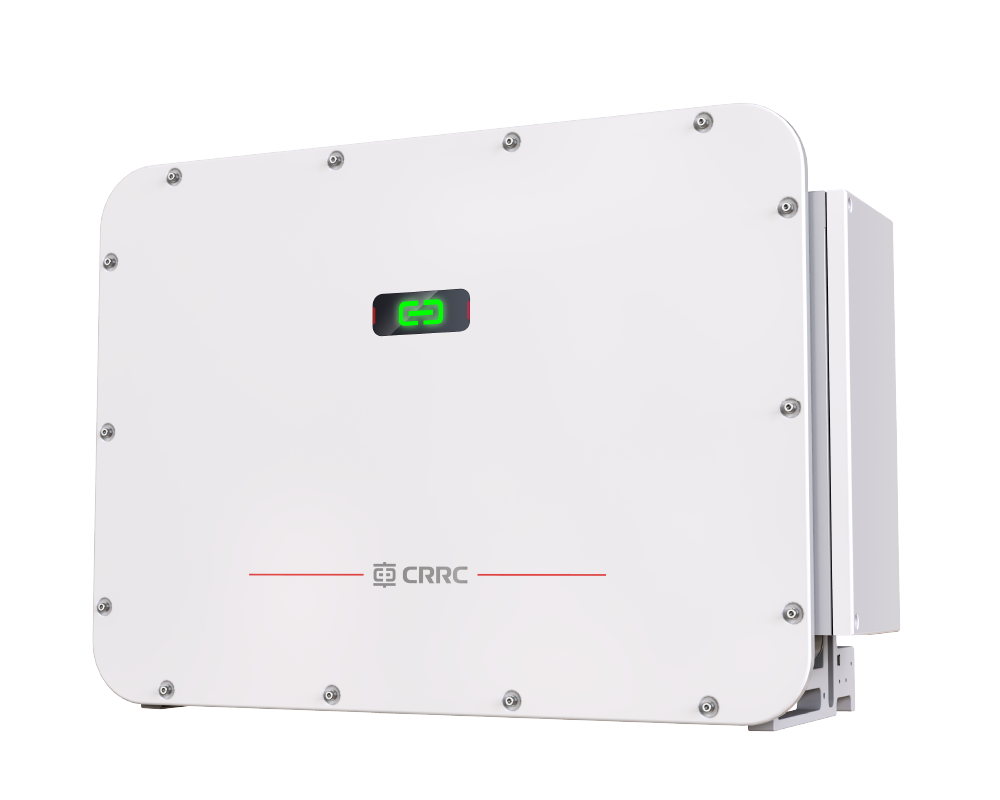

tPower-NL8.(100~125)KT
PRODUCT
FEATURES
High Yield
Compatible with industrial and commercial applications and distributed power stations
High conversion efficiency, wide voltage range, long-lasting power generation, and higher returns
Multiple MPPTs,proactively adapting to grids to ensure power generation
Safeguardinging
IP66 protection degree, High anti-corrosion design, adapt to various hash environments
PID recovery,extend module’s lifespan, and increase power generation
Intelligent arc detection, multiple security protections
Smart Energy
Smart I-V scanning and locate faults quickly
CRRC FORESEE Cloud Service, monitoring the data at anytime & anywhere
Multiple communication methods, adapt to various scenarios
TECHNICAL PARAMETERS
| Product Model | tPower-NL8.100KT | tPower-NL8.110KT | tPower-NL8.120KT | tPower-NL8.125KT | |
|---|---|---|---|---|---|
| DC | |||||
| Startup Voltage | 200V | ||||
| Max. DC input voltage | 1100V | ||||
| Max. DC input current | 45A | ||||
| MPPT voltage range | 180~1000V | ||||
| Rated operation voltage | 600V | ||||
| Number of MPPT | 10 | ||||
| PV strings per MPPT | 2 | ||||
| AC | |||||
| Rated output power | 100kW | 110kW | 120kW | 125kW | |
| Max. Output power | 110kVA | 121VA | 132kVA | 137.5kVA | |
| Max.Output current | 167.1A | 183.8A | 200.5A | 208.9A | |
| Rated grid voltage | 380Vac,3L/N/PE | ||||
| Grid voltage range | 310~480Vac | ||||
| Rated grid frequency | 50Hz/60Hz | ||||
| Grid frequency range | 45~55Hz/55~65Hz | ||||
| Harmonic(THD) | <1%(Rated power) | ||||
| Power factor | >0.99(Rated power)/(0.8leading~0.8lagging adjustable) | ||||
| DC component | <0.5%(Rated power) | ||||
| Protection | |||||
| Grid monitoring | Yes | ||||
| DC reverse connection protection |
Yes | ||||
| AC short-circuit protection | Yes | ||||
| Leakage current protection | Yes | ||||
| Surge Protection | DC Type ll/AC Type ll | ||||
| Ground fault monitoring | Yes | ||||
| DC switch | Yes | ||||
| PV String current monitoring | Yes | ||||
| AFCI protection | Optional | ||||
| PID recovery function | Optional | ||||
| System parameters | |||||
| Max.efficiency(%) | 98.70% | ||||
| European efficiency(%) | 98.50% | ||||
| Humidity range | 0~100%,No condensation | ||||
| Cooling method | Intelligent air cooling | ||||
| Operating ambient temperature range |
-30~+60℃ | ||||
| Power consumption at night | <7W | ||||
| Max.operating altitude | 4000m | ||||
| Display | LED/APP/Web | ||||
| Communication | RS485/Bluetooth/4G(optional)/WiFi(optional) | ||||
| Dimensions(W*H*D) | 980*685*382mm | ||||
| Weight | 85kg | ||||
| Protection Degree | IP66 | ||||
| Standard compliance | NB/T 32004-2018; IEC 61727;IEC 62109-1/2;IEC 61000-6-2/4 | ||||
