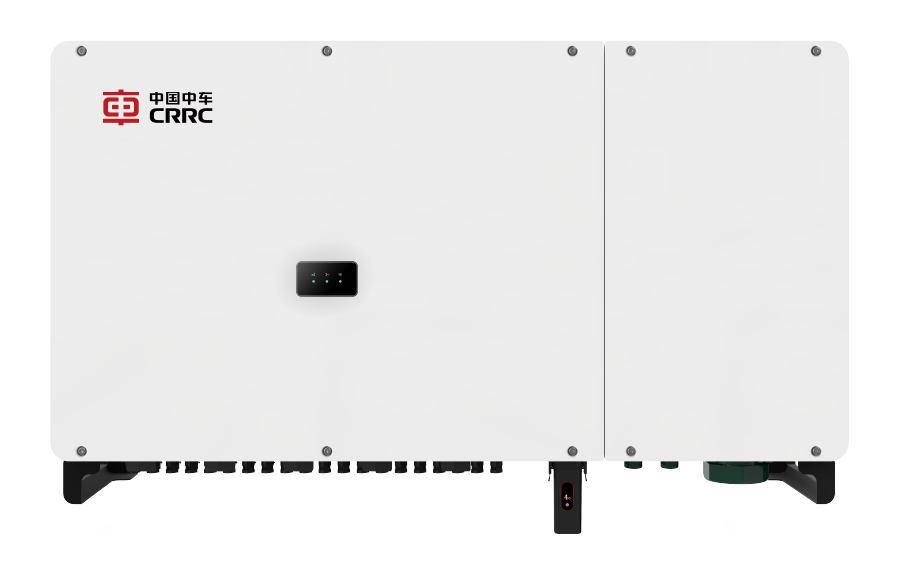

tPower-NM5-(80~125)K-T
PRODUCT
FEATURES
High Yield
Compatible with industrial and commercial applications and distributed power stations
High conversion efficiency, wide voltage range, long-lasting power generation, and higher returns
Multiple MPPTs,proactively adapting to grids to ensure power generation
Safeguardinging
IP66 protection degree, High anti-corrosion design, adapt to various hash environments
SVG at night function improves power factor and reduces wire loss
PID recovery,extend module’s lifespan, and increase power generation
Intelligent arc detection, multiple security protections
Smart Energy
Smart I-V scanning and locate faults quickly
CRRC FORESEE Cloud Service, monitoring the data at anytime & anywhere
Multiple communication methods, adapt to various scenarios
TECHNICAL PARAMETERS
| Product Model | tPower-NM5-80K-T | tPower-NM5-90K-T | tPower-NM5-100K-T | tPower-NM5-110K-T | tPower-NM5-125K-T | |
|---|---|---|---|---|---|---|
| DC | ||||||
| Max.DC input power | 120kW | 135kW | 150kW | 165kW | 187.5kW | |
| Max.DC input voltage | 1100V | |||||
| Max.DC input current | 30A*8 | 30A*9 | 30A*10 | 30A*10 | 30A*10 | |
| MPPT voltage range | 200~1000V | |||||
| Rated operation voltage | 600V | |||||
| Number of MPPT | 8 | 9 | 10 | 10 | 10 | |
| PV strings per MPPT | 2 | |||||
| AC | ||||||
| Rated output power | 80kW | 90kW | 100kW | 110kW | 125kW | |
| Max. Output power | 88kW | 99kW | 110kW | 121kW | 137.5kW | |
| Max.Output current | 127A | 142.9A | 158.8A | 174.6A | 199.3A | |
| Rated grid voltage | 400Vac | |||||
| Grid voltage range | 310~480Vac | |||||
| Rated grid frequency | 50Hz/60Hz | |||||
| Grid frequency range | 45~55Hz/55~65Hz | |||||
| Harmonic(THD) | <2%(Rated power) | |||||
| Power factor | >0.99(Rated power)/(0.8leading~0.8lagging adjustable) | |||||
| DC component | <0.5%(Rated power) | |||||
| Protection | ||||||
| Grid monitoring | Yes | |||||
| DC reverse connection protection |
Yes | |||||
| AC short-circuit protection | Yes | |||||
| Leakage current protection | Yes | |||||
| Surge Protection | DC Type ll/AC Type ll | |||||
| Ground fault monitoring | Yes | |||||
| DC switch | Yes | |||||
| PV String current monitoring | Yes | |||||
| AFCI protection | Optional | |||||
| PID recovery function | Optional | |||||
| System parameters | ||||||
| Max.efficiency(%) | 98.60% | 98.60% | 98.70% | 98.70% | 98.90% | |
| European efficiency(%) | 98.10% | 98.10% | 98.10% | 98.10% | 98.20% | |
| Humidity range | 0~100%,No condensation | |||||
| Cooling method | Intelligent air cooling | |||||
| Operating ambient temperature range |
-25~+60℃ | |||||
| Power consumption at night | <1W | |||||
| Max. operating altitude | 4000m | |||||
| Display | LED/LCD(optional) | |||||
| Communication | RS485/GPRS/WiFi(optional) | |||||
| Dimensions(W*H*D) | 1050*620*333mm | |||||
| Weight | 89kg | |||||
| Protection Degree | IP66 | |||||
| Standard compliance | NB/T 32004-2018;IEC 61727;IEC 62109-1/2;IEC 61000-6-2/4 | |||||
