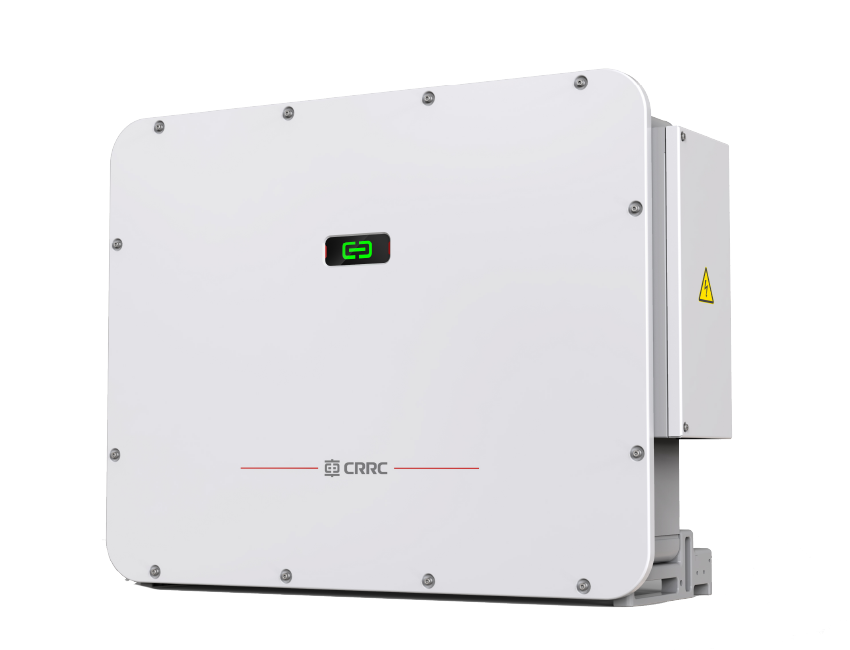

tPower-NM5
PRODUCT
FEATURES
Efficient
12 MPPTs, max. inverter efficiency 99.10%
30A per MPPT, compatible with 182/210 module
No derating up to 40°C, max. operating altitude 5000m
Friendly
Fast power response, reactive power response time <30ms
SCR≥1.0 stable operation in extremely weak grid
Continuous Low/High voltage ride through
Intelligent
Intelligent DC switch, automatically cut off the fault
Smart IV Curve diagnosis, active O&M
Q at night function, save investment cost
Reliable
IP65 protection degree, C5 anti-corrosion degree
DC arc alarm function，higher system reliability
24h real-time AC and DC insulation monitoring
TECHNICAL PARAMETERS
Technical Parameters
| Type designation | tPower-NM5 | |||||
|---|---|---|---|---|---|---|
| Input(DC) | ||||||
| Max. PV input voltage | 1500V | |||||
| Nominal PV input voltage | 1080V | |||||
| Start-up input voltage | 500V | |||||
| MPPT voltage range | 500 ~1500V | |||||
| Number of MPPT | 12 | |||||
| Max. number of input connector per MPPT | 2 | |||||
| Max. PV input current | 12 * 30 A | |||||
| Max. DC short-circuit current per MPPT | 50A | |||||
| Output(AC) | ||||||
| AC output power | 225kW@40℃ | |||||
| Max. AC output current | 178.7A | |||||
| Nominal AC voltage | 3/PE, 800V | |||||
| AC voltage range | 680V ~ 880V | |||||
| Nominal grid frequency/ Grid frequency range | 50Hz/ 45~55 Hz, 60 Hz/ 55~65 Hz | |||||
| Power factor | >0.99@Pn | |||||
| Power factor range | 0.8 leading ~ 0.8 lagging | |||||
| Harmonic(THDi) | <3%@Pn | |||||
| Efficiency | ||||||
| Inverter Max. efficiency | 99.10% | |||||
| Inverter European efficiency | 98.72% | |||||
| Protection & Function | ||||||
| Island protection | Yes | |||||
| Surge protection | DC Type II/AC Type II | |||||
| DC reverse connection protection | Yes | |||||
| DC switch | Yes | |||||
| AC overcurrent protection | Yes | |||||
| LVRT/HVRT | Yes | |||||
| Intelligent string monitoring | Yes | |||||
| Anti-PID/PID recovery | Yes/Optional | |||||
| Q at night function | Optional | |||||
| General parameter | ||||||
| Dimensions (W×D×H)* | 1115x383x852mm | |||||
| Weight (with hangers)* | ≤110kg | |||||
| Isolation method | Transformerless | |||||
| Protection degree | IP66 | |||||
| Power consumption at night | < 5W | |||||
| Cooling method | Intelligent air cooling | |||||
| Max. operating altitude | 5000m(>4000m derating) | |||||
| Operating ambient temperature range | -30℃ ~ 60℃ | |||||
| Allowable relative humidity range | 0 ~ 100% | |||||
| Display | LED, Bluethooth+APP | |||||
| Communication | RS485/PLC/wireless | |||||
| DC connection type | MC4 terminal | |||||
| AC connection type | OT/DT terminal (max. 400mm^2, support aluminum wire access) | |||||
| Standard compliance | IEC 62109-1/-2, IEC 61000-6-2/-4, NB/T 32004-2018, GB/T 37408-2019 | |||||
*Note: Actual dimension and weight are subject to delivery.
