Auxiliary Control Unit for 200km per hour speed Railway Vehicles

From: 2022-12-30

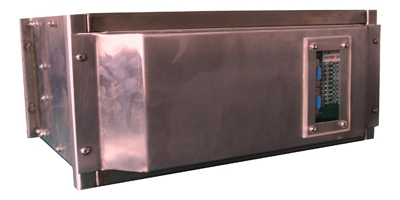

Structure of auxiliary control unit is pluggable, and it is composed of the chassis frame and the drawer cabinet.
Chassis frame is the support of the circuit boards of the TCU and also supply the interface of external low-voltage electrical. The drawer cabinet is used for the installation of control circuit boards, which to pull electronic equipment from drawer chassis rapidly. Maintenance serial bus interface and information display are located in the front panel of chassis.
