GJ70型液碱罐车

发布时间: 2015-06-05 来源: 浏览次数:
视力保护色:

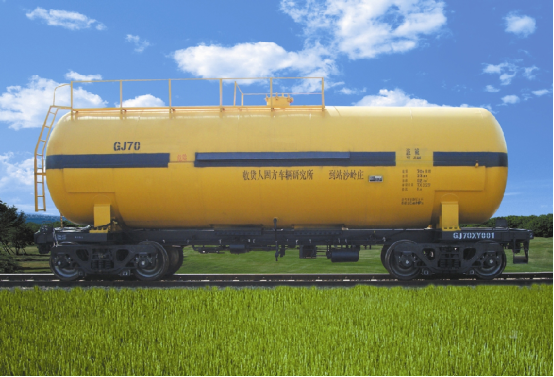

GJ70型液碱罐车

    GJ70型液碱罐车供在中国准轨线路运行,装运30%及以上浓度液碱系列产品。装卸方式为上装上卸。

主要参数:

参数                                                         GJ70
自重/t                                                       23.8
载重/t                                                       70
轴重/t                                                       23.45  (23+2%-1%)
自重系数                                                 0.34
每延米重/t.m-1                                        7.8
罐体总容积/ m3                                      54.3
罐体有效容积/ m3                                  52.7
车辆最大宽×高/mmXmm                      2939×4317
车辆长度/mm                                          12016
换长                                                         1.1
车辆定距/mm                                          7500
通过最小曲线半径/mm                          145
商业运营速度/km.h-1                            120
全车制动率 空车                                   26.3%
                     重车                                   17.2%
装卸方式                                                上装上卸
限界                                                        GB146.1-83
