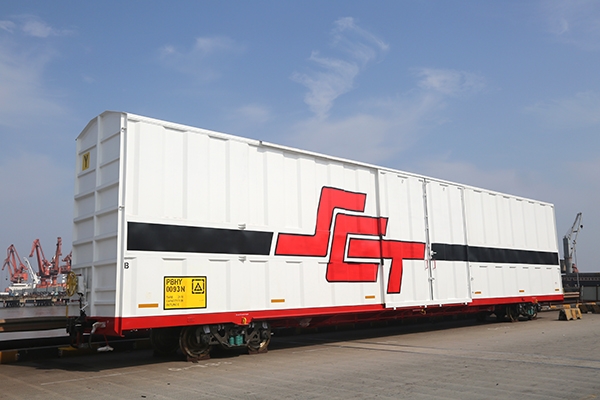

P71-AUS型大容积棚车

分享到:

Features 特点:

采用托盘装货方式,实现多层装货,上、下层货物不直接接触,最多可装载64个托盘,减低货损,提升装卸效率。

车门锁采用2级锁闭机构,安全可靠。

采用低自重、高可靠性的车体轻量化技术。

The special pallets realize multi-layer loading so that there is no direct contact between the upper and lower goods, reducing the possibility of cargo damage and improving the efficiency of loading and unloading.

The two - stage locking mechanism of door lock is safe and reliable.

The car body is designed for low tare weight and high reliability.

Parameters参数:



Axle load

轴重





25t





Volume

容积





243m3





Tare weight

自重





29t





Gauge

轨距





1435 mm





Loading capacity

载重





71t





Max. operation speed

运营速度





115km/h





Applicable goods

运输介质





Goods can be loaded on pallet

托盘货物





Car length

车辆长度





22608mm
