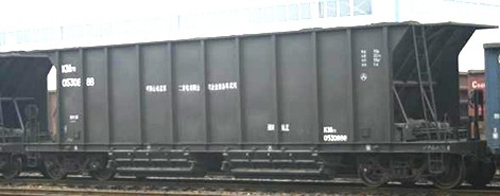

KM70 coal hopper wagon is used for transporting coal, ore, and other bulk goods on 1435mm gauge railway. The wagon could meet the requirements of fixed marshalling and loading/unloading at power stations, ports, coal clearing plants, and steel plants, etc. The goods could be discharged pneumatically or manually.
Main Parameters
Gauge ：1435mm；
Loading capacity ：70t；
Tare weight ：23.8t；
Axle load ：23t；
Volume ：75m3；
Business speed ：120km/h；
Min. radius of curvature negotiated :145m.
