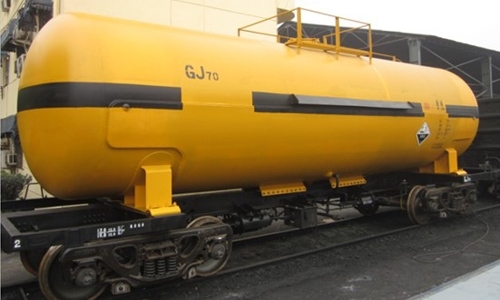

GJ70 liquid caustic soda tank wagon could transport liquid caustic soda (concentration of liquid caustic soda is more than 30%) on 1435mm gauge railway. The loading and unloading hatch is on the top of tank.
Main Parameters
Gauge：1435mm；
Loading capacity：70t；
Tare weight：23.8t；
Axle load：23t；
Capacity of tank：54.3 m3；
Effective capacity of tank：52.7 m3；
Business speed：120km/h；
Minimum radius of curvature negotiated: 145m.
