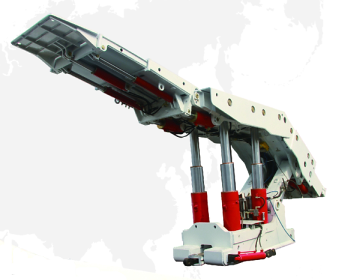

Electro-hydraulic Control Top Coal Caving Hydraulic Support

FORM: 08/03/2016 Browse number：

Type	Four-link support shield
Mode of operation	electro-hydraulic control
Support height	1.8-3.6 m
Support width	1.43-1.6 m
Supporting intensity	1.23-1.28 MPa
To adapt to the dip angle of coal seam	≤15°
Weight	30 t
