Rolling Stock details

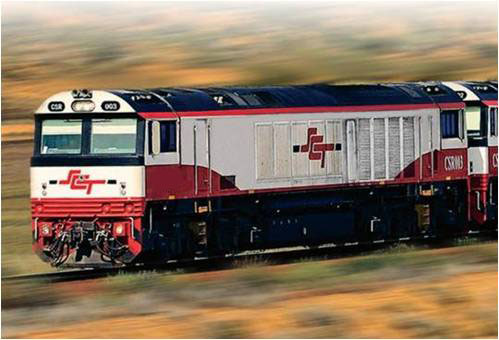

Type SDA1 Diesel Locomotive for Australia

FORM: 26/02/2016 Browse number:

Gauge 1,435 mm
Transmission AC-DC-AC
Wheel arrangement Co-Co
Axle load 22.3 t
Service power 3,000 kW
Max. running speed 120 km/h
Min. curve negotiation radius 70 m
Length over coupler centers 22,000 mm
Diesel engine model MTU 20V4000 R43L
Application Freight on main line
Customer Australia
