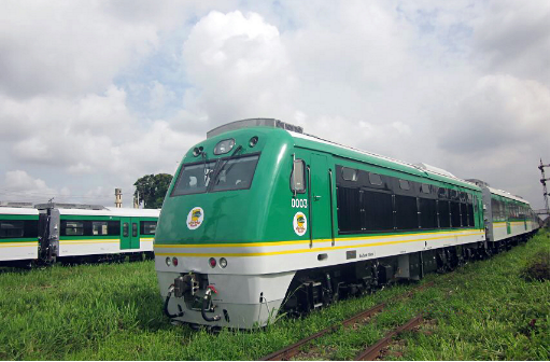

SDJ6 DMU is specially designed narrow-gauge DMU and supplied for the passenger transport of African railway. The motor car adopts AC-DC electric transmission, truss load-bearing structure with inside corridor, axle-hung type traction motor. It is featured with excellent curve negotiation, direct power feeding to trains, easy maintenance. It applies to the areas of high temperature, high altitude and heavy rainfall. This DMU is a “2 motor-cars and 3 trailing cars” unit with one motor-car at each end and three trailing passenger cars coupled in between. Mature technologies have been employed for the trailer cars, so the appearance and interior setup are more humanized, aesthetic, comfortable and reliable.
Main Technical Parameters
Rail Gauge 1067mm
Transmission (AC-DC Electric Transmission)
Axle Arrangement B0-B0
Axle Load 18t
Service Weight 72t
Maximum Service Power 895kW
Max. Operating Speed 100km/h
Continuous Speed 16.3km/h
Max. Starting Tractive Effort 212kN
Continuous Tractive Effort 132kN
Min. Radius of Curvature Negotiated 80m
Capacity of Fuel Tank 3000L
Overall Dimensions(L×W×H) 16800mm×2805mm×3900mm
Passenger Capacity 540 persons
