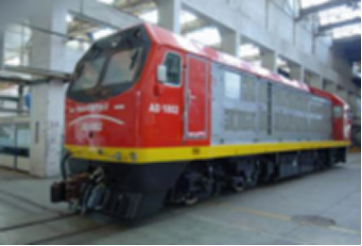

~SDD9 diesel locomotive is equipped with MTU 12V4000R41R diesel engine with
service power 1250kW. Main transmission adopts AC-DC electric transmission. And auxiliary system adopts DC and AC transmission. Two bogies with two axles for each and double pull rods for axle box are used. The mechanism of four low-position tractive rods is utilized for transmission of tractive and braking effort. The carbody is of load bearing centre beam and outside corridor. The braking system is equipped with double-purpose brake of air and vacuum. It is capable of multiple units in consist.
Main Technical Parameters
1. Purpose Passenger, freight or Shunting
2. Applicable environment Operate normally in severe sand, dry, hot, wet and desert areas
3. Rrail gauge 1000mm
4. Transmission AC-DC electric transmission
5. Axle arrangement B0-B0
6. Wheel diameter 914mm
7. Axle load (18±0.54)t
8. Service weight (72±2.16)t
9. Max. operating power of diesel engine 1250kW
10. Speed of locomotive (Calculated wheel diameter according to 880mm)
a) Max. operating speed 80km/h
b) Continuous speed 22.4km/h
11. Tractive effort at wheel rim (Calculated wheel diameter according to 880mm)
a) Starting tractive effort 237kN(Starting current limit)
254kN(adhesion limit)
b) Continuous tractive effort 143kN
12. Minimum radius of curvature negotiable 80m
13. Overall dimension(L×W×H) 15500×2750×3700mm
14. Capacity of fuel oil tank 3200L
15. Coupler center height (750±10)mm
