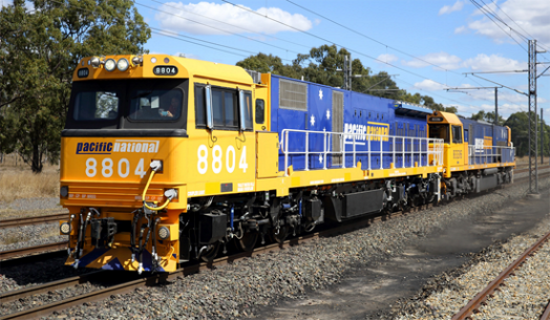

It is a type of AC-DC-AC transmission main line freight diesel locomotive for narrow gauge railway , adopting C0-C0 radial bogie with axle load of 20t, and axle load index can be improved through adding weights. The locomotive employs outside corridor and underframe load-bearing structure with single cab, installed with MTU 20V4000R43 diesel engine, adopts transmission solution of integrating main alternator with auxiliary alternator, KNORR ECP+WAP+DP60 distributed electro-pneumatic brake system, microcomputer control system based on CAN-OPEN bus, having the functions of distributed multiple-unit running, full power self-load, low and constant speed control, self-extinguishing in power room, forward video capture, emergency escape from front window, biochemical toilet and mute cooling fan. This type of locomotive has formally put into service in Australia, with good traction and brake performance, as well as reliable quality.
Main Technical Parameters
Rail Gauge 1067mm
Transmission (AC-DC-AC Electric Transmission）
Axle Arrangement C0-C0
Axle Load 20t
Service Weight 120t
Maximum Service Power 2700kW
Max. Operating Speed 100km/h
Continuous Speed 17.3km/h
Max. Starting Tractive Effort 490kN
Continuous Tractive Effort 433kN
Min. Radius of Curvature Negotiated 80m
Capacity of Fuel Tank 8000L
Overall Dimensions(L×W×H) 22000mm×2800mm×3870mm
