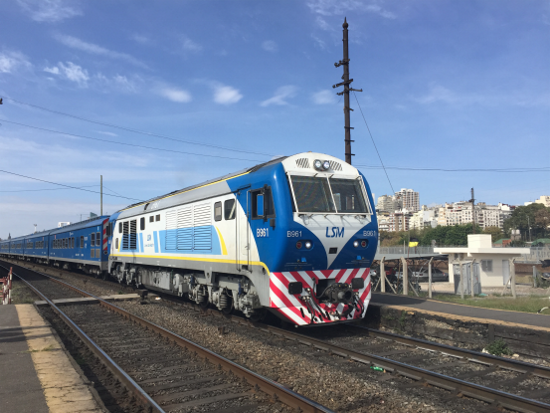

SDD7 is a broad-gauge diesel locomotive for main line passenger and freight transportation. It adopts CAT3516B diesel engine,control software based on standard IEC61131-3,broad gauge bogie with splayed traction pin, full automatic coupler and chain coupler with buffer disk. The overall layout of the diesel locomotive is reasonable.The performance is excellent and the quality is reliable. It can apply to environment condition of salt-fog and desert and it has successfully operated in South America.
Main Technical Parameters
Rail Gauge 1676 mm
Transmission AC-DC Electric Transmission
Axle Arrangement C0-C0
Axle Load 19 t
Service Weight 114 t
Max. Service Power 1678kW
Max.Operating Speed 120km/h
Continuous Speed 21.5 km/h
Max.Tractive Effort 320kN
Continuous Tractive Effort 200kN
Min. Radius of Curvature Negotiated 100m
Capacity of Fuel Tank 6000L
Overall Dimensions(L×W×H) 19980mm×3160mm×4420 mm
